Integrated Cooling System

Integrated Cooling Systems combine cooling equipment, water circulation, heat rejection, terminal units, and intelligent controls into coordinated solutions for industrial, commercial, agricultural, and data center projects. Available configurations include central chiller plants, modular cooling systems, containerized plants, and packaged cooling assemblies.


First 12 Last 1/2


Integrated Cooling System Configurations

Different facilities require different cooling architectures. The available system configurations cover the following applications:

System Type Main Applications Available Configuration
Data Center Cooling System Large data centers, AI computing facilities and server infrastructure Central chiller plant, precision air conditioning, AHU and liquid cooling

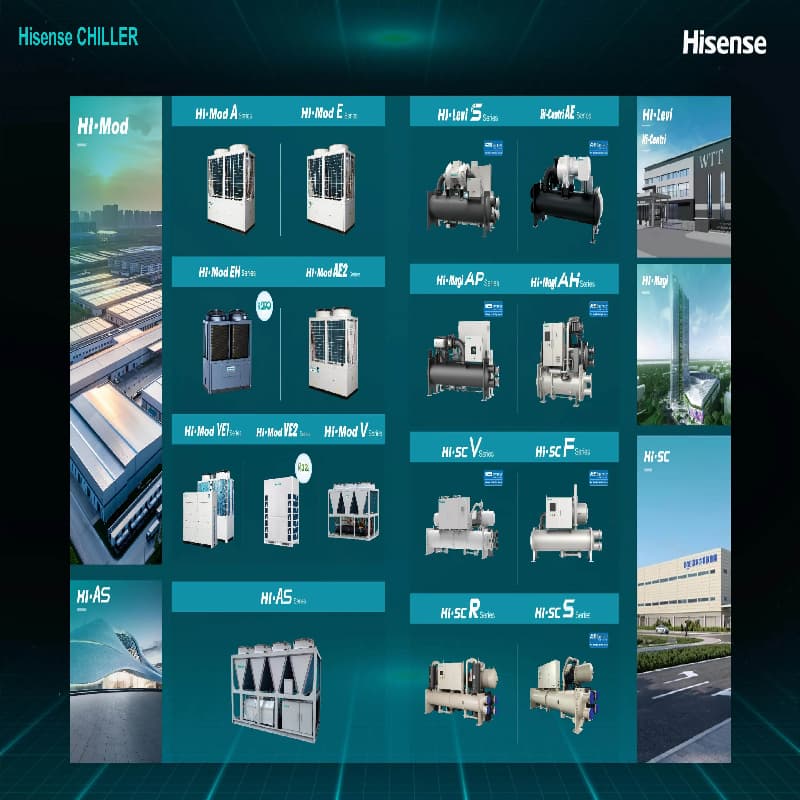

Industrial Chiller Plant Industrial parks, production facilities and process cooling Air-cooled, water-cooled and dual-cool-source systems
Healthcare Integrated Chiller Plant Hospitals, medical campuses and critical healthcare areas Chillers, pumps, cooling towers, heat exchangers and terminal units
Greenhouse Climate Control System Commercial greenhouses, plant factories and agricultural facilities Heating, cooling, air handling and environmental controls
Commercial Integrated Chiller Plant Office buildings, hotels, commercial complexes and public facilities Integrated chillers, pumps, cooling towers and intelligent controls

Cooling Capacity and Compressor Selection

Industrial chiller plant configurations support four compressor types, with typical reference capacities as follows:

Compressor Type Typical Capacity per Unit
Scroll 10–200 RT
Screw 50–500 RT
Centrifugal 200–3,000 RT
Magnetic Bearing Centrifugal 100–1,500 RT

The magnetic bearing centrifugal configuration has a stated COP reference of 6.0–7.0+.

Additional system capacity references include:

  • Containerized Chiller Plant: 100–2,200 RT per container, with multi-container configurations reaching 4,000 RT and above.
  • Modular Chiller Plant: 50–1,000 RT per module, with parallel configurations reaching 5,000 RT and above.
  • Packaged Chiller Plant: 100–3,000 kW.

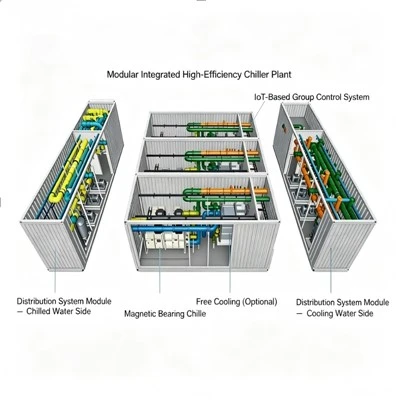

  • High-Efficiency Integrated Chiller Plant: 100–3,000 RT.

These are published reference ranges. Final equipment selection and system capacity depend on the project requirements.

Cooling Source and System Architecture

Three cooling source configurations are available:

Air-Cooled System

Uses air-cooled chillers without requiring cooling towers or cooling water treatment systems. It is suitable for sites with limited water resources or restricted cooling tower installation space.

Water-Cooled System

Combines water-cooled chillers with cooling towers. The industrial chiller system reference specifies an overall COP of 5.0–6.0+.

Dual-Cool-Source System

Combines independent air-cooled and water-cooled sources. The two cooling sources can provide mutual backup for projects requiring additional cooling continuity.

A complete integrated chiller plant can include chillers, cooling towers, chilled water pumps, condenser water pumps, plate heat exchangers, water treatment systems, pressurization and make-up units, piping, valves, and intelligent group controls.

Prefabricated, Containerized and Modular Plant Options

Different plant formats support different installation and capacity requirements.

  • Containerized Chiller Plant: Integrates chillers, pumps, cooling towers, piping and controls into a standard shipping container. It can be deployed outdoors, on rooftops or in available open spaces.

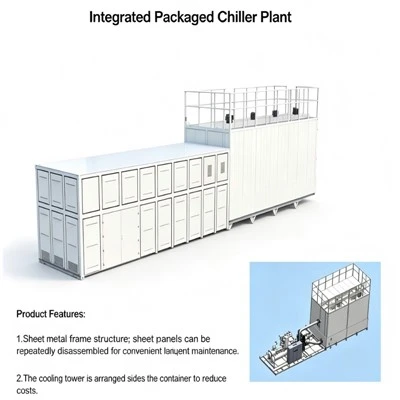

  • Packaged Chiller Plant: Combines chillers, pumps, piping and controls in a skid-mounted assembly, with internal piping, electrical connections and control logic installed and validated before delivery.
  • Modular Chiller Plant: Uses parallel cooling modules, allowing the initial system capacity to increase as production or building cooling demand grows.
  • Central Chiller Plant: Integrates the cooling source and supporting equipment into a centralized plant, with coordinated equipment selection and system controls.

Core equipment in the industrial chiller system configuration can be factory-prefabricated and pre-commissioned. Site work includes positioning, piping and utility connections.

Intelligent Control and System Integration

Integrated data center cooling systems support coordinated control between the cooling source and terminal equipment.

Available functions include:

  • Centralized monitoring of chillers, pumps, cooling towers and terminal air conditioning equipment.
  • Demand-based cooling and load prediction.
  • Equipment rotation and automatic failover.
  • N+X redundancy configurations.
  • Optional free cooling modules and plate heat exchangers.
  • Configurable communication protocols for Building Management System (BMS) integration.
  • Dual power input and intelligent power anomaly monitoring in the published data center system configuration.

Terminal equipment can include air handling units (AHUs), precision air conditioners and fan coil units (FCUs), depending on the project configuration.

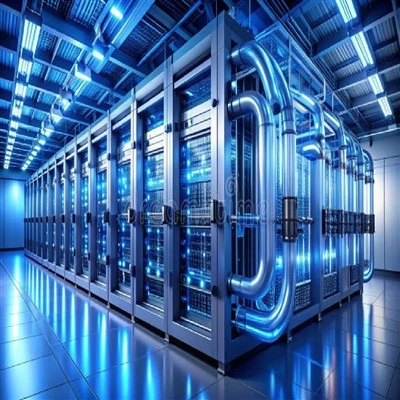

For server infrastructure, additional cooling options include in-row precision air conditioning, chilled-water or direct-expansion cooling, and liquid cooling solutions for high-density AI and HPC applications.

Request an Integrated Cooling System Quotation

Send your project application, estimated cooling load, preferred cooling source, site conditions and required system configuration. Our team can review the available system options and prepare a project-specific equipment configuration and quotation.

As one of the most professional integrated cooling system manufacturers and suppliers in China, we have world-leading production equipment and strong manufacturing capabilities. If you're going to buy customized integrated cooling system made in China, welcome to get quotation from our factory. For price consultation, contact us.
