Product Overview
The Server Cooling System is a precision cooling solution designed for high-density server rows and areas with localized hot spots. With the "server rack" or "server row" as the cooling unit, it is deployed in close proximity to heat sources, enabling near-source cooling and on-demand cooling. This system effectively addresses the issues of long airflow paths and uneven cooling in high-density areas that room-level air conditioning cannot adequately resolve, ensuring that critical equipment operating temperatures remain within optimal ranges.
The system employs in-row air conditioners installed between server racks, with front supply and rear return air, delivering extremely short airflow paths and high cooling efficiency. Units can be connected to chilled water systems or utilize direct expansion cooling sources, automatically adjusting cooling output based on rack heat loads. It often serves as a supplemental solution to room-level cooling, addressing localized cooling needs in high-density zones.
The system supports chilled water and air-cooled direct expansion technology paths, with multiple airflow configurations including upflow and downflow to accommodate various room layouts.
Core Features
Precise & Efficient
Deployed in close proximity to heat sources, the system features extremely short airflow paths and high delivery efficiency, effectively avoiding energy losses caused by mixing of cold and hot air. Equipped with high-efficiency variable-speed compressors and electronic expansion valves (EEV) for fast response and precise flow regulation, automatically matching cooling output based on actual rack heat loads. Optional EC fans deliver over 30% energy savings compared to conventional fans, with outstanding part-load efficiency.
Reliable & Durable
Built with rigorously tested, high-quality components, engineered for 24/7 continuous operation with long service life and low maintenance requirements. Critical components support online maintenance, ensuring system availability remains intact in the event of a failure. Intelligent power monitoring is provided as standard, delivering real-time alerts for phase loss, phase reversal, overvoltage, undervoltage, and other power anomalies.
Smart Control
Equipped with multiple sizes of true-color touchscreen displays, multi-level password access control, and self-diagnostic system functions. Comprehensive monitoring and display of key parameters including power supply voltage, frequency, cooling capacity, airflow, and temperature/humidity trends. Supports group control of up to 64 units with advanced features including scheduled rotation, fault-based rotation, cascading, demand synchronization, and anti-competition operation. Supports auto-restart after power failure, scheduled on/off, and local storage of up to 1,000 historical records. Compatible with Building Management Systems (BMS), with communication protocols flexibly configurable based on project requirements.
Flexible Deployment
The compact cabinet design matches standard rack width for direct installation between server rows, minimizing footprint. Supports multiple airflow configurations including upflow and downflow to accommodate various room layouts. Optional AC/EC fan configurations and dual power input (ATS) for enhanced reliability.
Applications
- Data centers with localized hot spots
- High-density server row areas
- Data centers requiring supplemental cooling alongside room-level air conditioning systems
- AI training clusters and high-performance computing centers
-
Enterprise high-density server rooms
-
High-density retrofits for existing server rooms
Technical Advantages
Near-Source Cooling
Deployed in close proximity to heat sources, extremely short airflow paths, high cooling efficiency
Precise Temperature Control
Automatically adjusts cooling output based on rack heat loads, eliminating localized hot spots
24/7/365 Continuous Operation
Engineered for uninterrupted operation with 99.999% availability
Intelligent Group Control
Supports networking of up to 64 units with rotation, backup, cascading, and centralized monitoring
Flexible Communication Configuration
Supports multiple standard protocols, configurable based on project requirements for seamless BMS integration
System Selection Reference
|
Cooling Type |
Application Scenario |
Technical Feature |
|

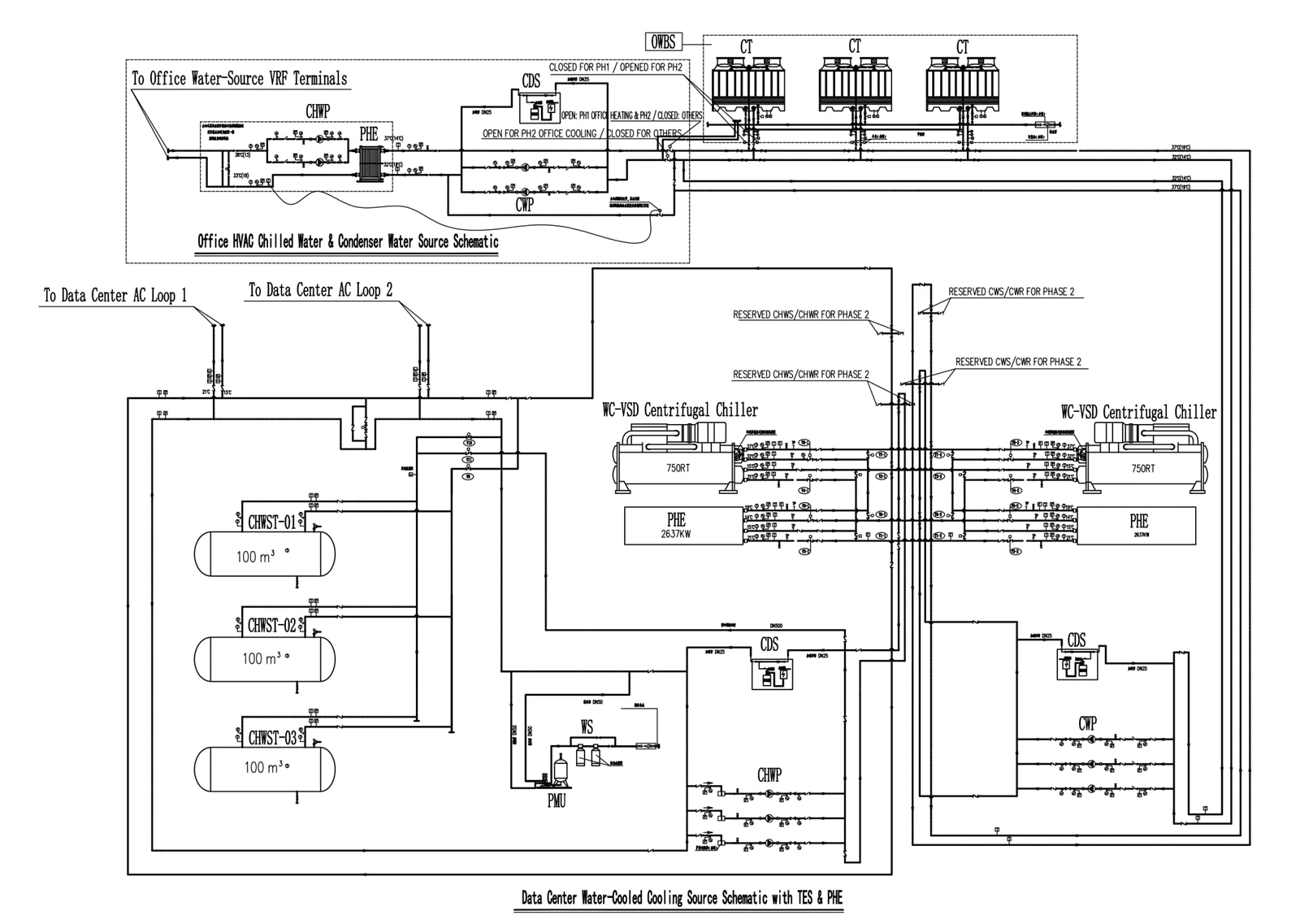

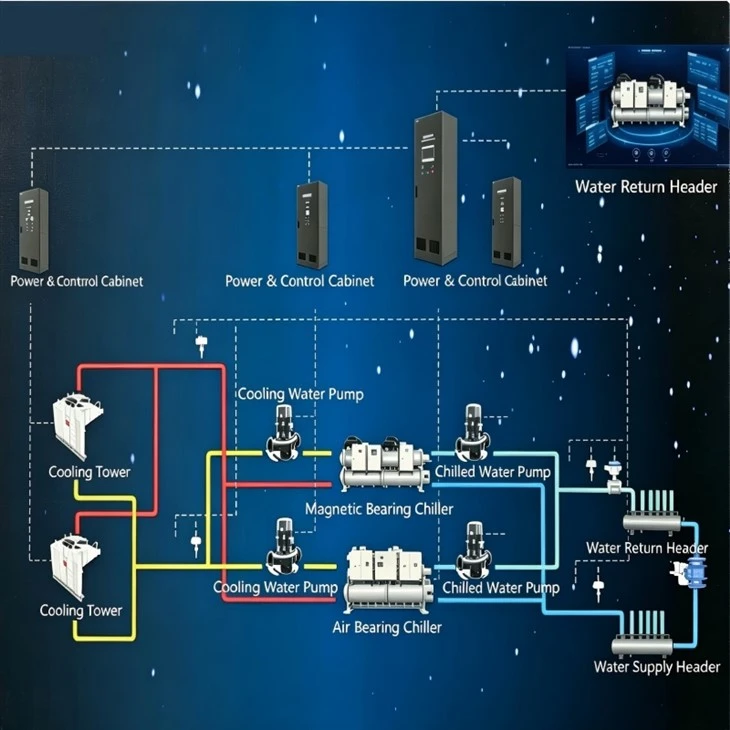

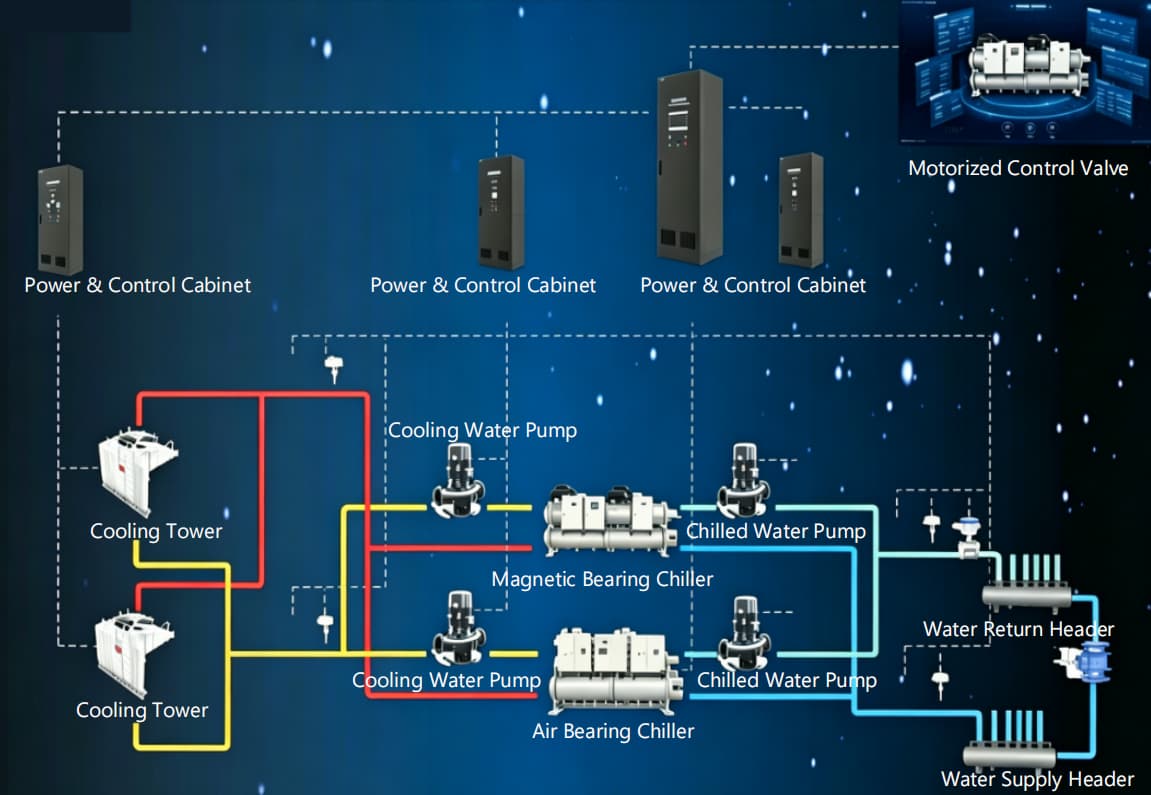

Chilled Water |
Existing central chilled water system |
External chilled water coil, simple and efficient system |
|
Air-Cooled DX |
No centralized cooling source, independent deployment |
Self-contained compressor, independent system operation |
The Server Cooling System delivers reliable, efficient, and precise localized environmental protection for high-density server rows through precise near-source cooling, outstanding energy performance, and intelligent management, effectively solving data center "hot spot" challenges.
Note: The above system description serves as a reference for standard functionality and architecture, intended to demonstrate core capabilities. Actual project solutions require customized design based on facility scale, power density, cooling fluid selection, and client requirements. Final configurations are subject to project-specific selection. For inquiries, please contact us through any of the channels listed on our "Contact Us" page, and we will provide preliminary solution recommendations based on your specific project needs.
