Precision Air Conditioner Systems for Data Centers
A Precision Air Conditioner is designed to maintain controlled temperature and humidity conditions in data centers, server rooms, telecommunications facilities, and other critical environments. Unlike conventional comfort air conditioning, precision cooling systems are configured around equipment heat loads, continuous operating requirements, airflow distribution, and cooling source availability.
Hangzhou Dayu HVAC Engineering Co., Ltd. offers four Precision Air Conditioner configurations: Water-Cooled CRAC, Air-Cooled CRAC, Chilled Water CRAH, and Dual Cool AC. Each system uses a different cooling architecture, allowing project teams to select equipment according to existing cooling infrastructure, installation conditions, and environmental control requirements.
Precision Air Conditioner System Options
The main difference between these Precision Air Conditioner systems is their cooling method and heat rejection arrangement.
| Product Type | Cooling Method | System Configuration |
|---|---|---|
| Water-Cooled CRAC Unit | Water-cooled direct expansion (DX) | Refrigerant transfers heat to cooling water through a brazed stainless steel heat exchanger-condenser. |
| Air-Cooled CRAC Unit | Air-cooled direct expansion (DX) | An outdoor air-cooled condenser rejects heat directly to the atmosphere. |
| Chilled Water CRAH Unit | Central chilled water | A fan and cooling coil use chilled water supplied by an external central chiller plant. |
| Dual Cool AC | Chilled water and air-cooled DX | Chilled water operates as the primary cooling source, with an independent air-cooled DX system as backup. |
Water-Cooled Precision Air Conditioner
The Water-Cooled CRAC uses direct expansion refrigeration with water-side heat rejection. It can use cooling water supplied through an open-loop arrangement connected to a cooling tower or well, or a closed-loop arrangement with an external dry cooler. A water-glycol mixture is typically used in closed-loop systems to prevent freezing.
Air-Cooled Precision Air Conditioner
The Air-Cooled CRAC uses an outdoor air-cooled condenser to release heat directly into the atmosphere. It uses R410A or R454B refrigerant and does not require a cooling tower or chilled water piping.
Chilled Water Precision Air Conditioner
The Chilled Water CRAH uses chilled water supplied by an external central chiller plant. The unit mainly consists of fans and cooling coils, making it suitable for facilities with an existing central chilled water infrastructure.

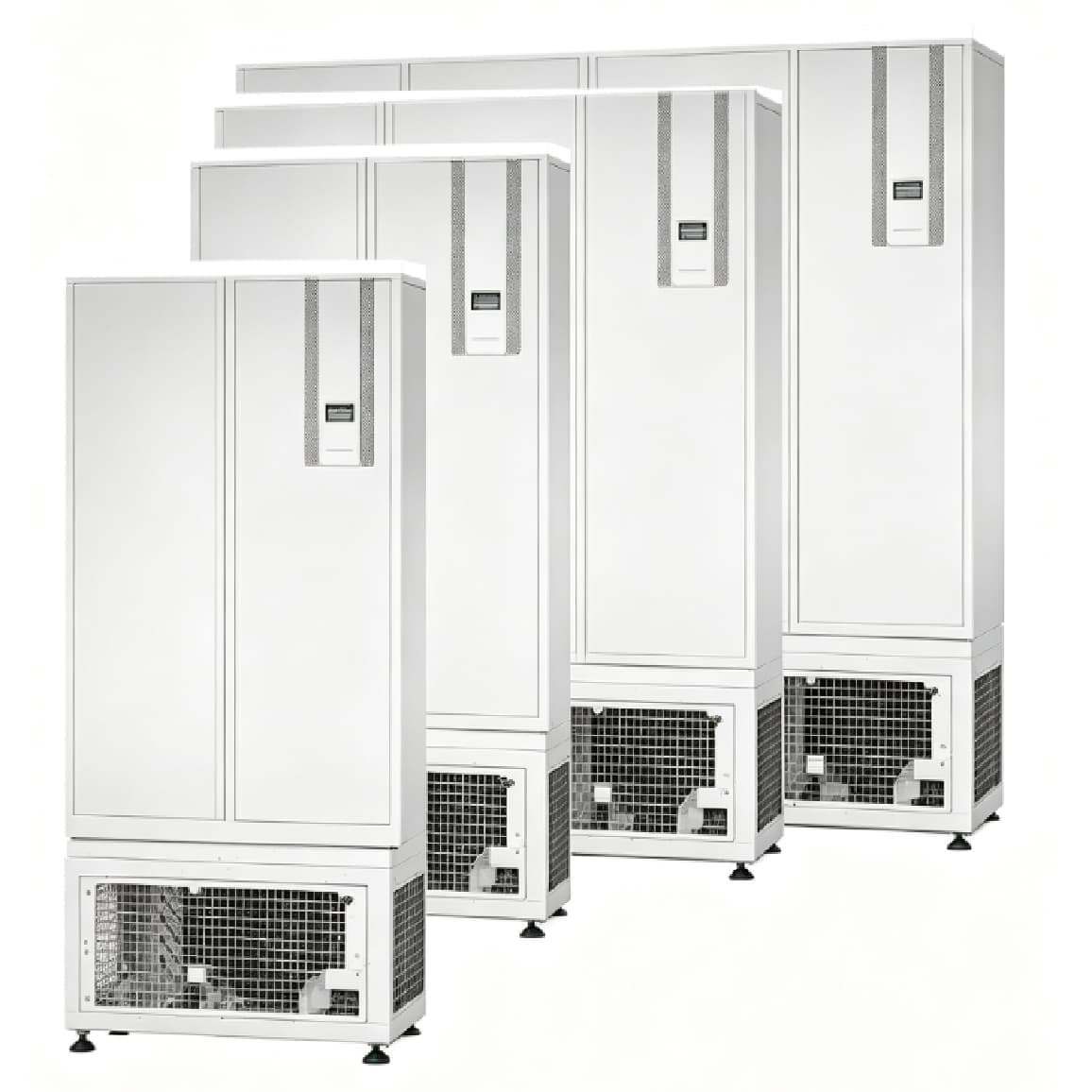

Dual Cool Precision Air Conditioner
The Dual Cool AC combines chilled water cooling with an independent air-cooled DX refrigeration system. Chilled water serves as the primary cooling source during normal operation. When the chilled water supply is interrupted, the equipment fails, or maintenance is required, the system automatically switches to DX cooling.
Temperature and Humidity Control
Temperature and humidity control accuracy varies according to the Precision Air Conditioner configuration.
| Product | Temperature Control Accuracy | Humidity Control Accuracy |
|---|---|---|
| Water-Cooled CRAC | ±1℃ | ±3% to ±5% |
| Air-Cooled CRAC | ±1℃ | ±3% to ±5% |
| Chilled Water CRAH | ±1℃ | ±5% |
| Dual Cool AC | ±1℃ | ±5% |
The water-cooled and air-cooled CRAC configurations specify a sensible heat ratio (SHR) of ≥0.9. The CRAH product description specifies a sensible heat ratio of up to 95%, while the Dual Cool AC specifies ≥0.9.
Airflow and Installation Configurations
Different equipment layouts require different air supply arrangements. All four Precision Air Conditioner configurations support the following airflow options:
- Upflow air supply
- Downflow air supply
These arrangements accommodate different room layouts, including raised-floor underfloor air supply and ceiling return air configurations where specified by the product design.
Control Systems and BMS Integration
CRAC Control Functions
The Water-Cooled CRAC and Air-Cooled CRAC configurations provide touchscreen control, multi-level password access, self-diagnostics, and multi-unit group control. Available group-control functions include scheduled rotation, fault-based rotation, cascading, and demand synchronization. BMS communication protocols can be configured according to project requirements.
CRAH Control Functions
The Chilled Water CRAH uses a microprocessor controller, a modulating chilled-water control valve, and BMS integration through standard protocols such as Modbus. Automatic Transfer Switches (ATS) are available as an option.
Dual Cool Control Functions
The Dual Cool AC monitors both cooling sources and automatically changes over to the DX system when the chilled-water source becomes unavailable.
Precision Air Conditioner Project Selection
Cooling capacity ranges and detailed equipment configurations are selected according to the project rather than presented as one universal specification.
The selection process considers:
- Facility heat load and required cooling capacity
- Available cooling water or central chilled water infrastructure
- Outdoor condenser installation conditions
- Required airflow arrangement
- Temperature and humidity control requirements
- BMS communication and group-control requirements
Specific cooling capacity ranges, equipment configurations, and detailed technical parameters are subject to project-specific selection.
Precision Air Conditioner Applications
Precision Air Conditioner systems are used in facilities where stable environmental conditions and controlled cooling are important for continuous equipment operation.
- Data centers and server rooms
- Telecommunications equipment rooms
- Computer and IT infrastructure facilities
- Industrial control rooms
- Other critical equipment environments
Request a Precision Air Conditioner Quotation
Looking for a Precision Air Conditioner for your data center or critical facility project? Send your project cooling load, preferred cooling system, existing cooling-source information, airflow arrangement, and required equipment quantity.
Our team can review the available project information and provide product selection and quotation support for the appropriate precision air conditioning configuration.
