Cooling Tower

Cooling Tower Types and Series

Our cooling tower range covers open-circuit, closed-circuit, cross-flow, counter-flow, and dry-wet combined designs. The portfolio includes six product options for industrial cooling tower systems and HVAC cooling applications, with different heat exchange configurations, tower structures, and construction materials.

  • Dry-Wet Combined Closed Cooling Tower: Combines an air-cooled finned-tube coil with an evaporative smooth-tube coil.
  • JBN Series Industrial Cooling Tower: Large industrial cooling tower available with steel frame or reinforced concrete frame construction.
  • JNC Series Closed Circuit Cooling Tower: Cross-flow closed cooling tower featuring a vertical serpentine coil.
  • JNT Series Cross Flow Cooling Tower: Open cooling tower with an external high-efficiency waterproof motor and aluminum alloy fan.
  • JFC Series Counter-Flow Closed Cooling Tower: Counter-flow closed-circuit design with different power consumption options under the same dimensions.
  • JFT Series Counter Flow Cooling Tower: Open counter-flow cooling tower featuring inclined straight-wave fill and a hot-dip galvanized steel frame.



Cooling Tower Design and Configuration

The main differences between these cooling tower series are their heat exchange arrangements, airflow configurations, and component designs.

Series Main Configuration
Dry-Wet Combined Air-cooled finned-tube coil and evaporative smooth-tube coil
JBN Large industrial cooling tower; steel frame or reinforced concrete frame
JNC Vertical serpentine coil, waterproof motor, aluminum alloy airfoil fan, and high-efficiency fill
JNT External waterproof motor and high-efficiency aluminum alloy fan
JFC Counter-flow closed-circuit design with multiple power consumption specifications under the same dimensions
JFT Inclined straight-wave fill, waterproof motor, aluminum alloy airfoil fan, and hot-dip galvanized steel frame

Cooling Tower Construction Materials and Structural Options

Available construction materials and structural configurations vary by series.

Cooling Tower Series Available Materials or Structure
Dry-Wet Combined Galvanized steel, stainless steel
JNC Galvanized steel, stainless steel
JNT FRP, hot-dip galvanized steel, stainless steel
JFC Galvanized steel, stainless steel
JFT FRP, hot-dip galvanized steel, stainless steel
JBN Steel frame, reinforced concrete frame

These options are listed according to the respective product configurations. Material availability should be confirmed for the selected model.

Cooling Tower Performance and Operating Conditions

Different cooling tower designs address specific operating and installation requirements.

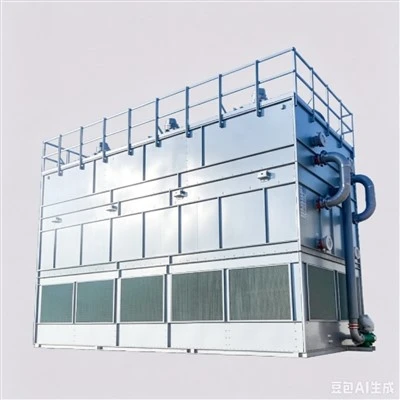

Dry-Wet Combined Cooling Tower

The system combines air-cooled and evaporative cooling coils. At an ambient temperature of 5–10°C as the switching point, the air-cooled coil operates alone below the switching point. Above it, spray water is activated and the evaporative cooling coil operates. The design is intended for regions with limited water resources and relatively abundant electricity. Its listed features include dry-wet water-saving operation and plume abatement.

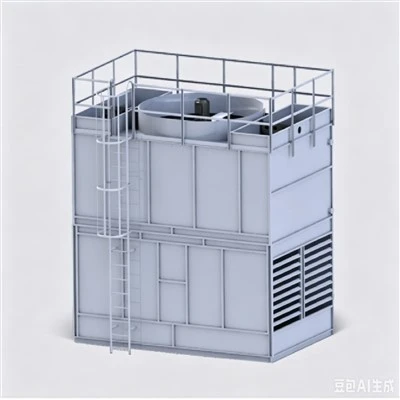

JNC Series Closed Circuit Cooling Tower

The vertical serpentine coil design provides low air resistance and a high water load on the coil surface. The compact configuration supports heat exchange performance, while the product is also described with anti-scaling and dust-suppression characteristics.

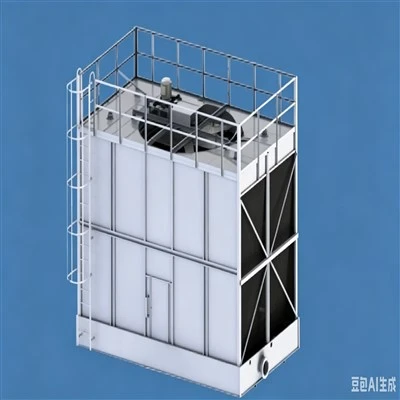

JNT Series Cross Flow Cooling Tower

The open cross-flow design uses gas-water crossflow, with low resistance and energy-saving characteristics. Its listed operating features include anti-clogging, easy cleaning, and convenient maintenance.

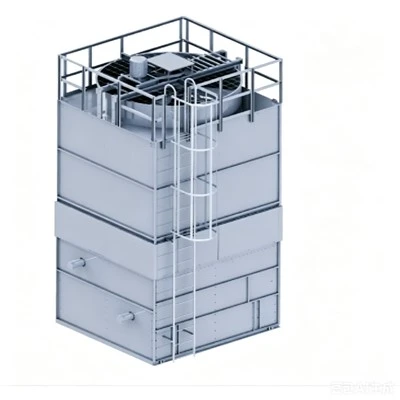

JFC Series Counter-Flow Closed Cooling Tower

The JFC series offers different power consumption specifications within the same dimensions. Compared with conventional counter-flow closed cooling towers, its listed design reduces floor space by more than 25%. The coil arrangement avoids water evaporation on the outer coil surface, reducing scaling, while positioning the coil outside the airflow reduces the risk of freezing in winter.

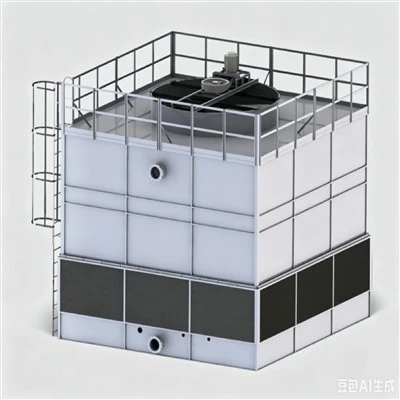

JFT Series Counter Flow Cooling Tower

The JFT series uses counter-current heat exchange, inclined straight-wave fill, and a hot-dip galvanized steel frame. Its listed characteristics include a wide temperature resistance range, stable operation, and adaptability to harsh environments.

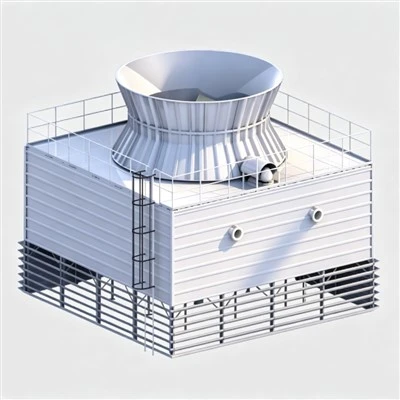

JBN Series Industrial Cooling Tower

The JBN series is designed for large industrial cooling applications. Its listed characteristics include performance under extreme temperature differences, resistance to harsh environments, and winter freeze protection.

Engineering and Supply Support

Our broader HVAC business covers solution design, equipment selection, integrated manufacturing, installation, commissioning, and ongoing service. The company's HVAC activities also extend across industrial facilities, data centers, commercial buildings, and agricultural applications.

For cooling tower projects, the required model and configuration should be matched to the actual operating conditions and installation requirements.

Request a Cooling Tower Quotation

Send us your project cooling requirements, including the required water flow rate, inlet and outlet water temperatures, design wet-bulb temperature, installation conditions, and required quantity.

If you already have an equipment specification sheet or an existing cooling tower model, share it with us for product selection and quotation.

As one of the most professional cooling tower manufacturers and suppliers in China, we have world-leading production equipment and strong manufacturing capabilities. If you're going to buy customized cooling tower made in China, welcome to get quotation from our factory. For price consultation, contact us.

Closed Circuit Cooling Tower, Closed Type Cooling Tower, Cross Flow Type Cooling Tower
