Product Overview
The Server Room Cooling System is a precision environmental control solution designed for small to medium-sized server rooms, network rooms, and critical equipment spaces, providing year-round, uninterrupted temperature and humidity control for servers, network equipment, UPS systems, batteries, and other critical devices.
The system delivers temperature control accuracy of ±1℃ and humidity control accuracy of ±5%, with over 95% of energy consumption dedicated to sensible cooling (directly reducing air temperature). Engineered for 24/7/365 continuous operation, it ensures a reliable environmental guarantee for critical IT equipment.
The system supports two technology paths - Air-Cooled Direct Expansion (CRAC) and Chilled Water (CRAH) - allowing flexible selection based on project cooling source conditions. Multiple airflow configurations including upflow and downflow are available to accommodate various room layouts.
Core Features
Energy Efficient
Designed with high airflow, low enthalpy change, and high sensible heat ratio to precisely match the sensible heat load characteristics of server rooms, avoiding energy waste from excessive dehumidification. Equipped with high-efficiency variable-speed compressors and electronic expansion valves (EEV) for fast response and precise flow regulation. Optional EC fans deliver over 30% energy savings compared to conventional fans, with outstanding part-load efficiency. The evaporator features high-efficiency internally grooved copper tubes and hydrophilic aluminum louvered fins for superior heat exchange performance.
Reliable & Durable
Built with rigorously tested, high-quality components, engineered for 24/7 continuous operation with long service life and low maintenance requirements. Intelligent power monitoring is provided as standard, delivering real-time alerts for phase loss, phase reversal, overvoltage, undervoltage, and other power anomalies. Quick-connect threaded fittings eliminate on-site welding.
Smart Control
Equipped with multiple sizes of true-color touchscreen displays, multi-level password access control, and self-diagnostic system functions. Comprehensive monitoring and display of key parameters including power supply voltage, frequency, cooling capacity, airflow, and temperature/humidity trends. Supports group control of up to 64 units with advanced features including scheduled rotation, fault-based rotation, cascading, demand synchronization, and anti-competition operation. Supports auto-restart after power failure, scheduled on/off, and local storage of up to 1,000 historical records. Compatible with Building Management Systems (BMS), with communication protocols flexibly configurable based on project requirements.
Flexible Deployment
Supports multiple airflow configurations - upflow and downflow - to accommodate various room layouts. Optional AC/EC fan configurations and dual power input (ATS) for enhanced reliability. The compact cabinet design minimizes footprint for easy installation in existing server rooms.
Applications
- Small to Medium-Sized Server Rooms & Network Rooms
- Telecom Base Stations & Switching Equipment Rooms
- UPS & Battery Rooms
- Power Distribution Rooms & Equipment Rooms
-
Laboratories & Precision Instrument Rooms
-
Edge Computing Nodes & Micro Data Centers
Technical Advantages
High Sensible Heat Ratio
SHR ≥0.9, efficiently removing sensible heat without over-dehumidification
24/7/365 Continuous Operation
Engineered for uninterrupted operation with 99.999% availability
Wide Range Precise Modulation
Variable-speed compressor + EC fan combination provides stepless capacity adjustment from 10% to 100% load
Intelligent Group Control
Supports networking of up to 64 units with rotation, backup, cascading, and centralized monitoring
Flexible Communication Configuration
Supports multiple standard protocols, configurable based on project requirements for seamless BMS integration
System Selection Reference
|
Cooling Type |
Application Scenario |
Technical Feature |
|
Air-Cooled DX (CRAC) |
No centralized cooling source, independent deployment |
Self-contained compressor, air-cooled condenser |
|

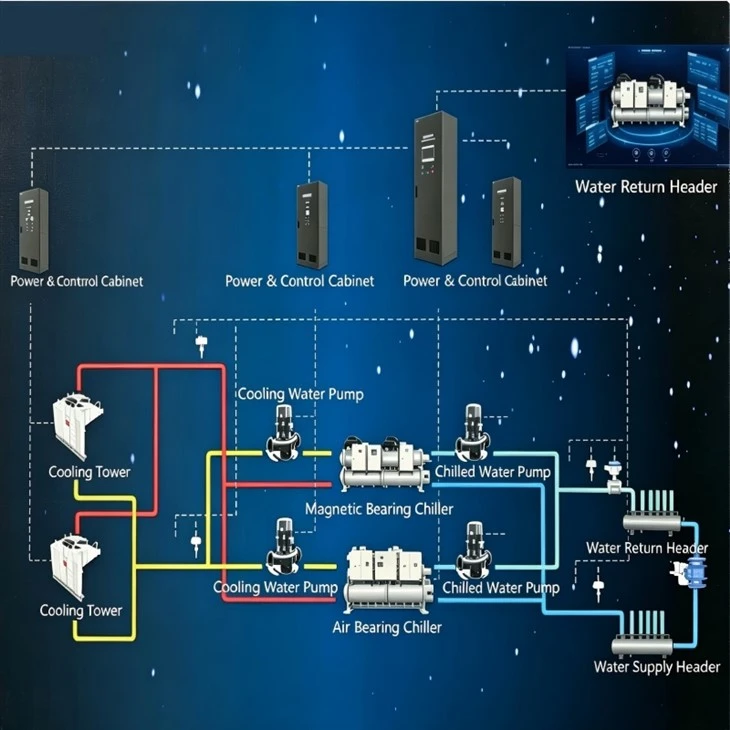

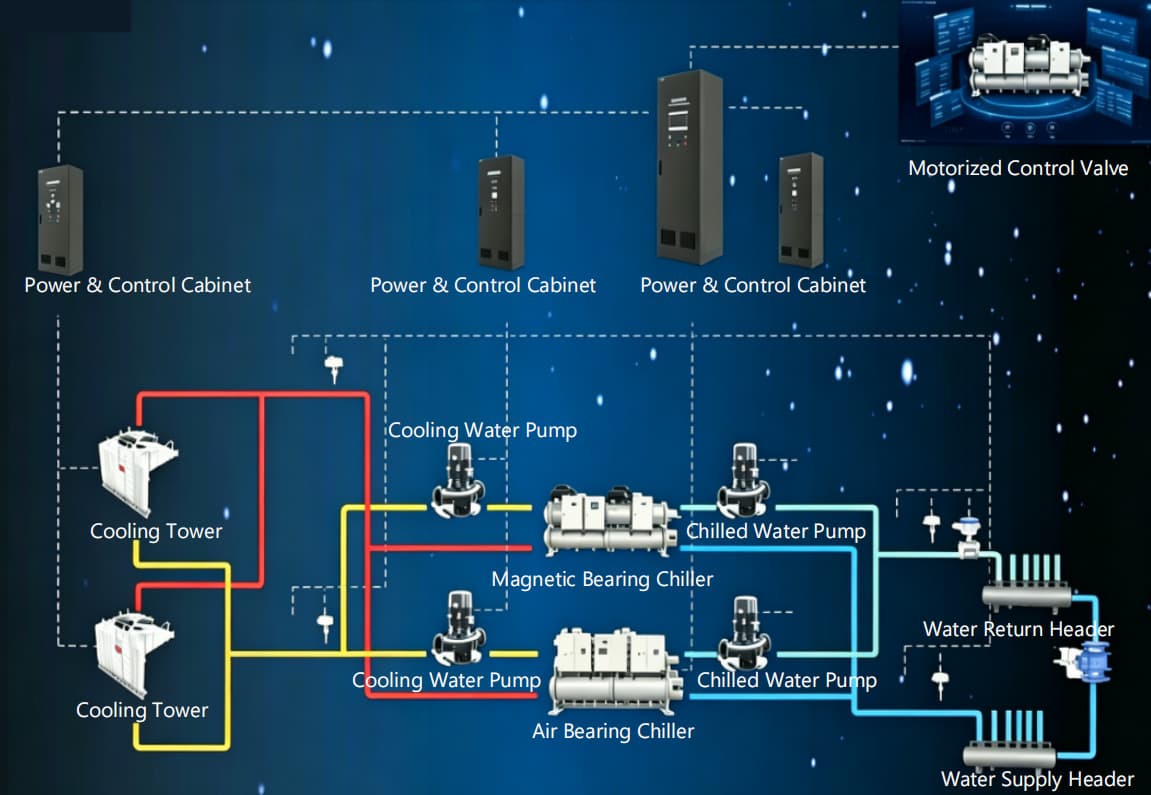

Chilled Water (CRAH) |
Existing central chilled water system |
External chilled water coil, no compressor |
The Server Room Cooling System delivers reliable, efficient, and precise year-round environmental protection for small to medium-sized mission-critical facilities through precision environmental control, outstanding energy performance, and intelligent management.
Note: The above system description serves as a reference for standard functionality and architecture, intended to demonstrate core capabilities. Actual project solutions require customized design based on facility scale, power density, cooling fluid selection, and client requirements. Final configurations are subject to project-specific selection. For inquiries, please contact us through any of the channels listed on our "Contact Us" page, and we will provide preliminary solution recommendations based on your specific project needs.
