Product Overview

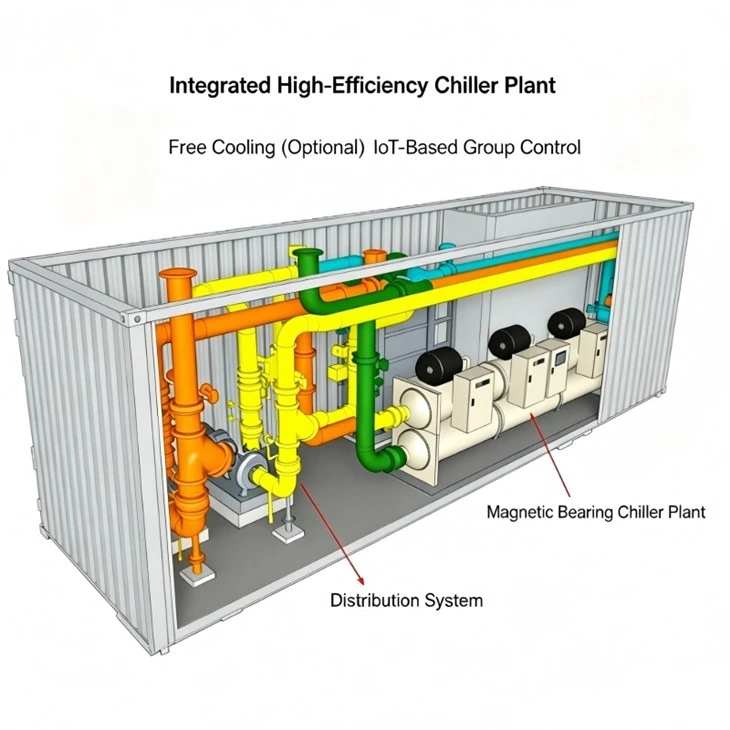

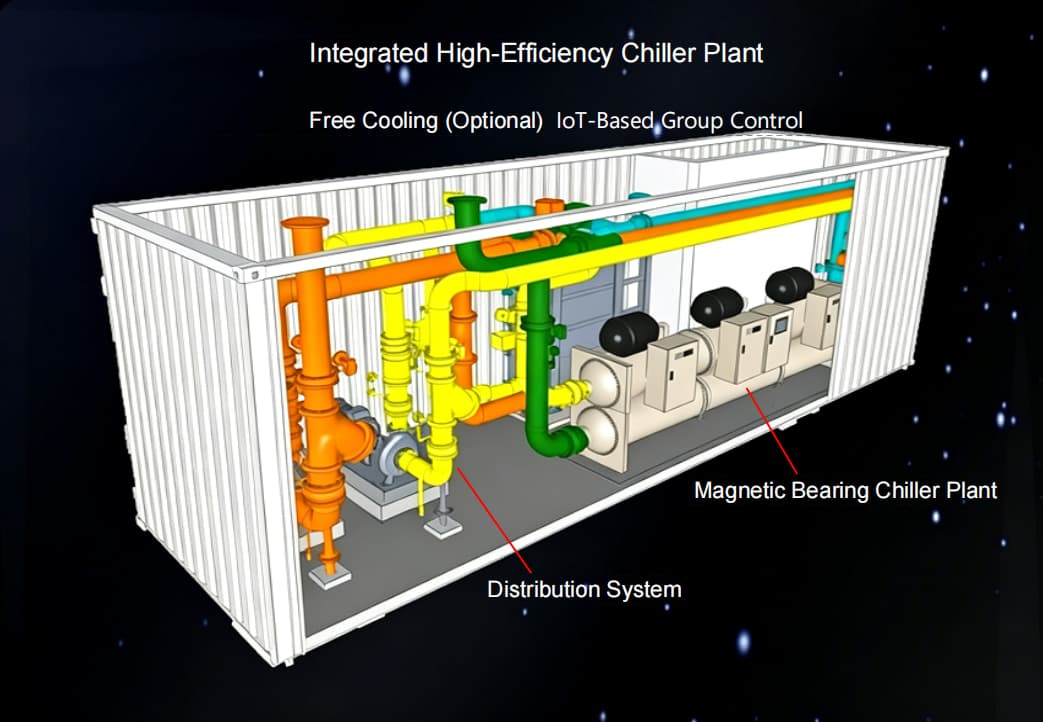

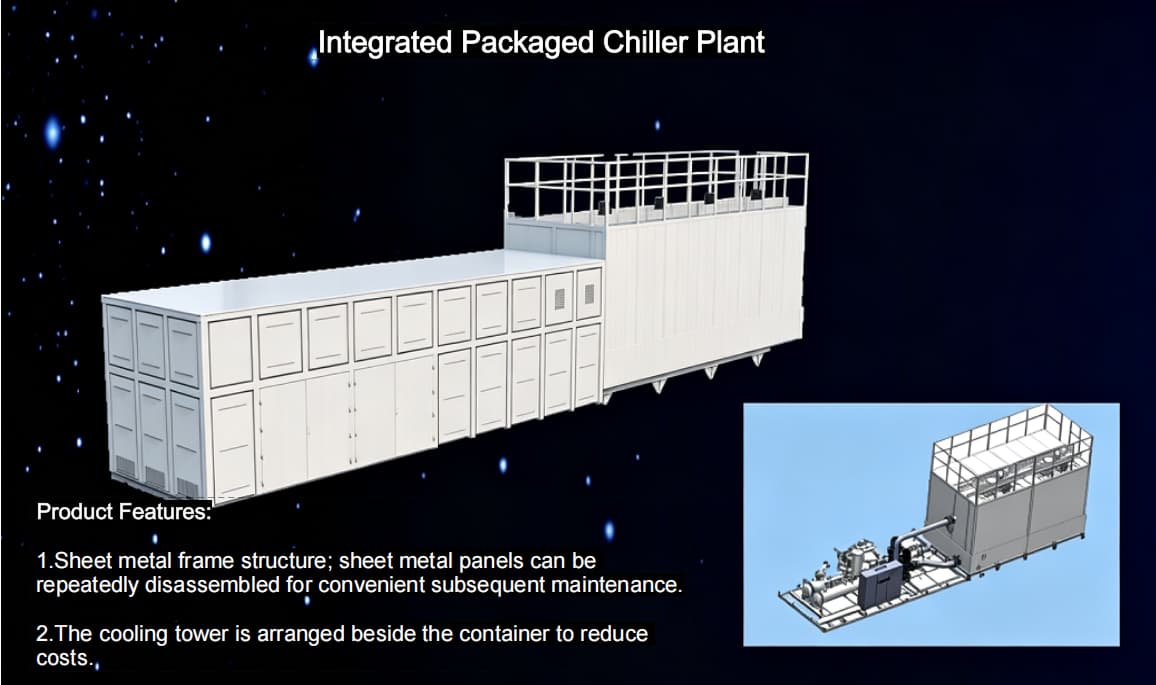

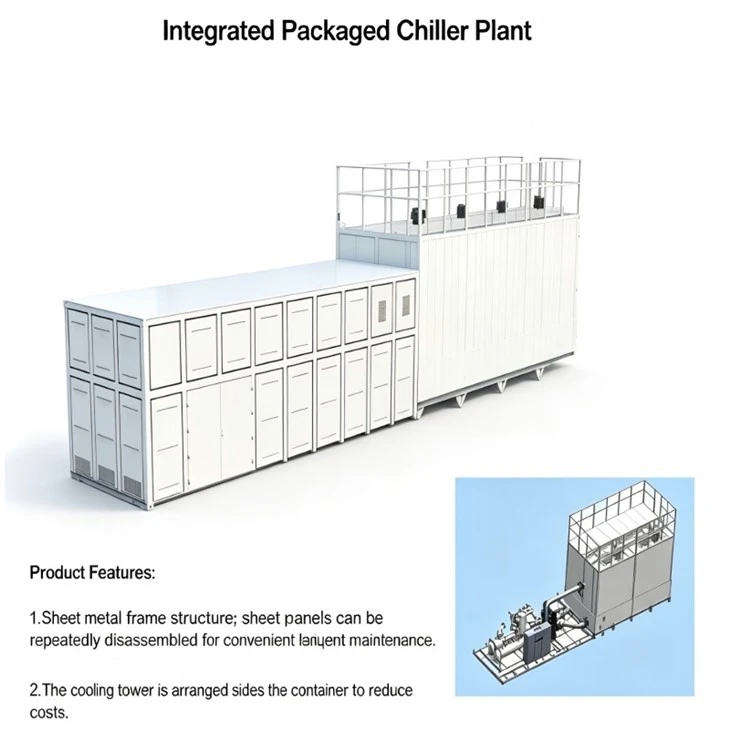

High-Efficiency Integrated Chiller Plant is a high-performance, space-saving cooling source solution purpose-built for office buildings, commercial complexes, hotels, hospitals, and public facilities. It integrates high-efficiency chillers, pumps, cooling towers, piping systems, and intelligent controls into a compact, factory-assembled plant - delivering superior energy performance while minimizing building footprint occupation.
The system is engineered to meet the rigorous efficiency demands of modern commercial buildings. By integrating magnetic bearing centrifugal chillers or high-efficiency screw chillers with advanced system design and intelligent control strategies, the chiller plant achieves exceptional full-load and part-load efficiency - contributing to LEED certification and other green building standards while significantly reducing operational energy costs over the building's lifecycle.
Designed to address the complex and varied cooling demands of commercial buildings, the system supports air-cooled, water-cooled, or dual-cool source configurations based on site conditions and project requirements. Compressor types can be selected from screw, centrifugal, or magnetic bearing centrifugal to match capacity and efficiency targets. Capacities typically range from 100RT to 3,000RT (reference values - actual capacity based on project requirements).
As a total solution provider, we deliver not only the chiller plant but also the complete terminal equipment - including air handling units (AHUs) for public areas and fan coil units (FCUs) for individual zones - ensuring seamless compatibility across the entire cooling chain and simplifying project management for building owners and developers.
Core Features
High-Performance Chiller Plant Design
Engineered for superior energy efficiency with magnetic bearing centrifugal chillers or high-efficiency screw chillers as the core cooling source. Magnetic bearing technology eliminates mechanical friction, delivers exceptional part-load efficiency (IPLV up to 10+), and enables oil-free operation with minimal maintenance requirements - significantly reducing lifecycle costs.
Minimal Building Space Occupation

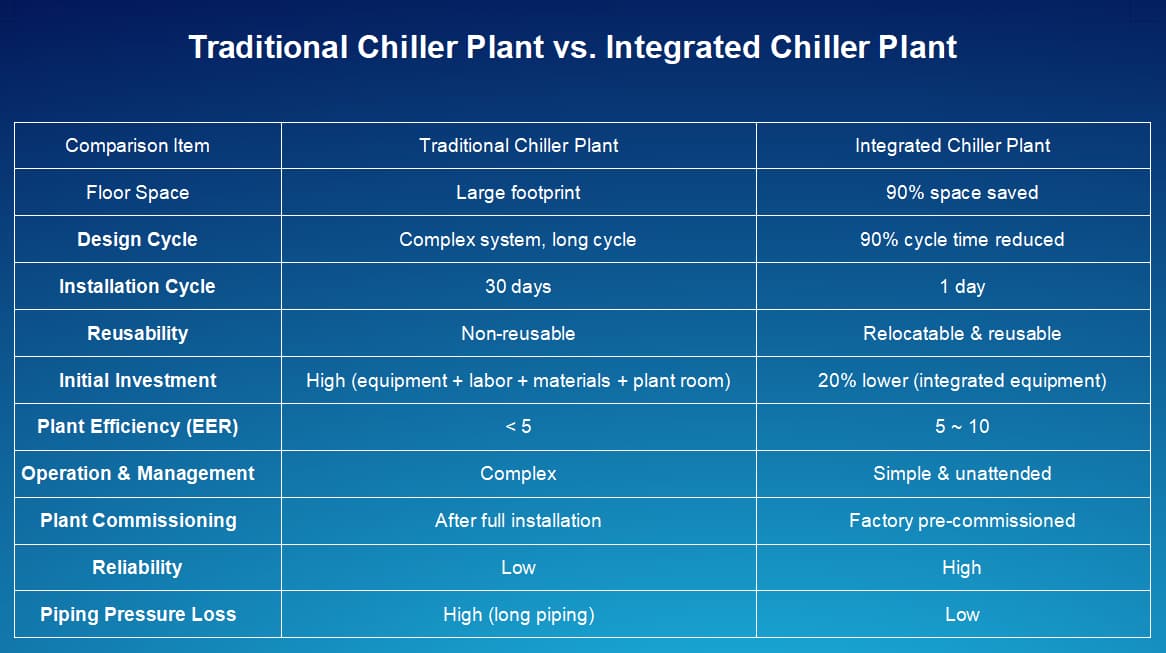

The integrated, compact design substantially reduces the footprint required for cooling equipment compared to conventional chiller plants. This is particularly valuable in commercial buildings where every square meter of rentable or usable space directly impacts project economics. The system can be configured for indoor plant rooms or outdoor installations, maximizing building flexibility.
Integrated Plant Delivery

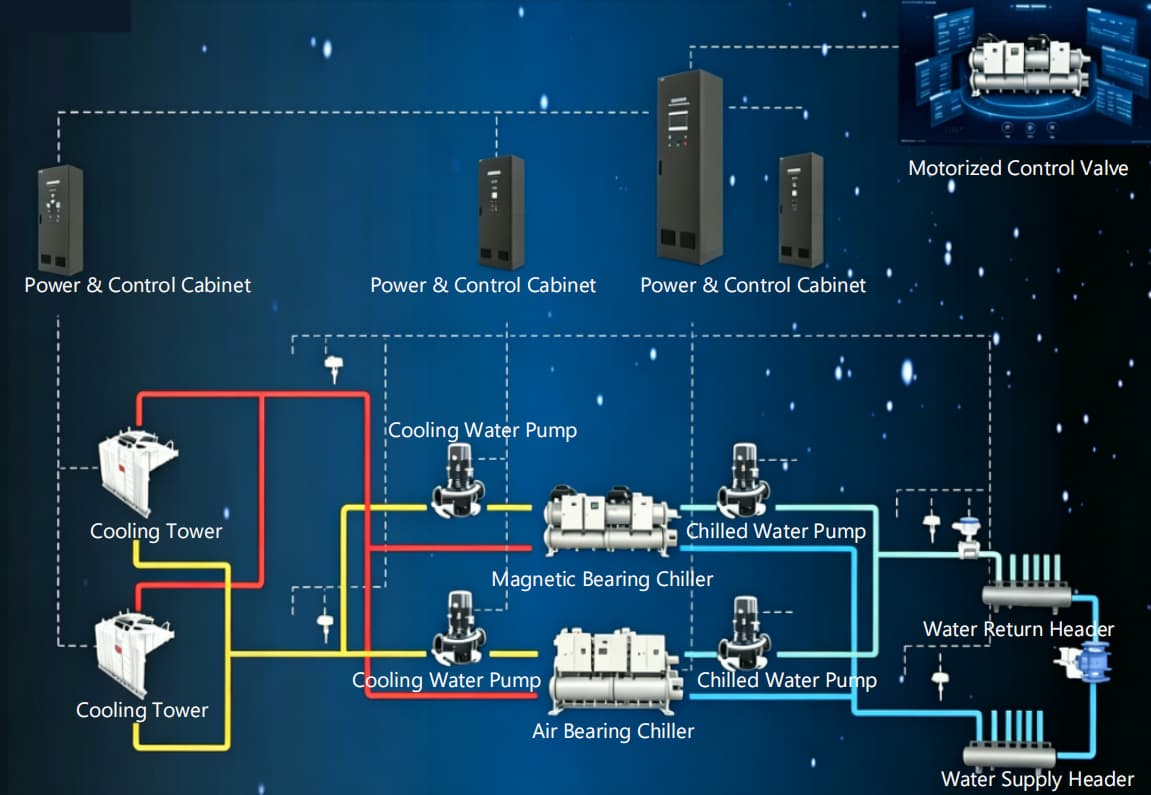

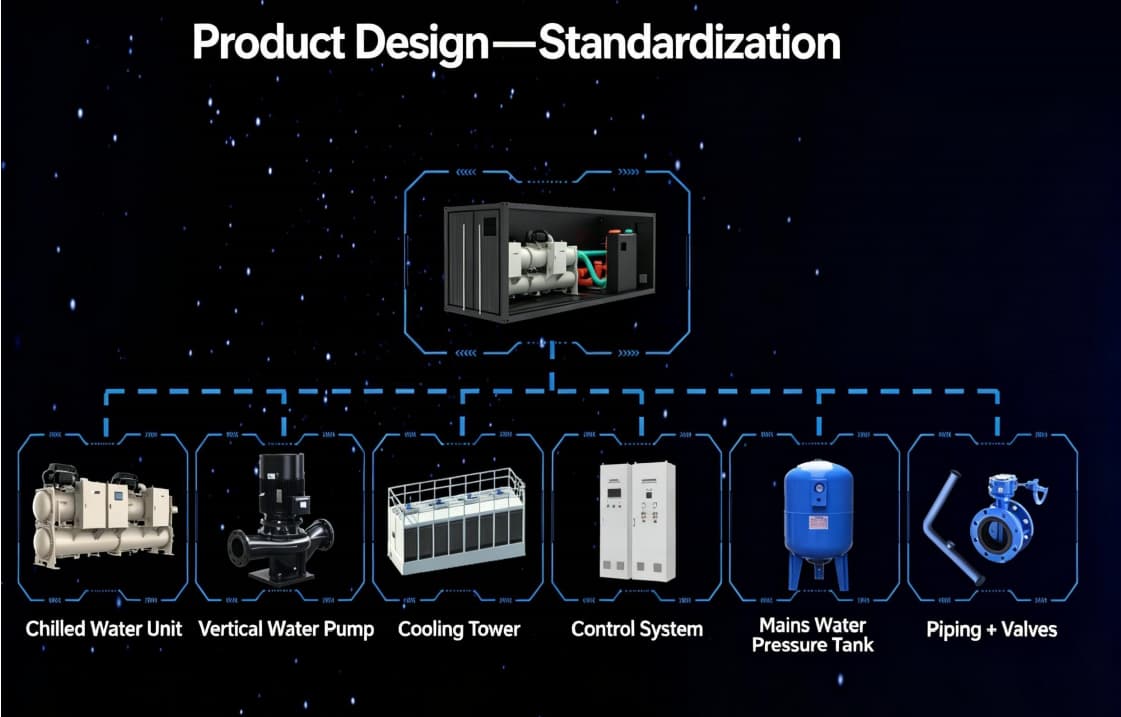

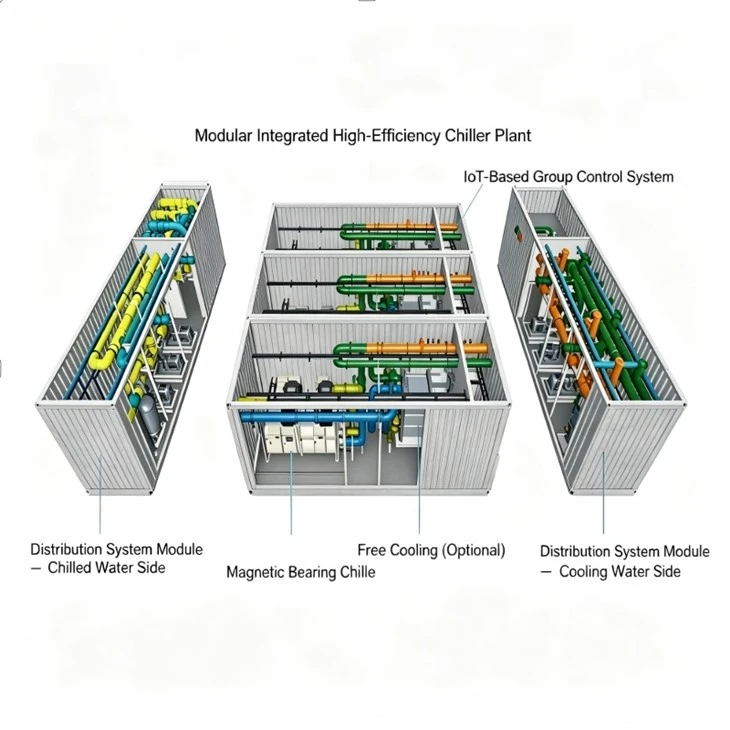

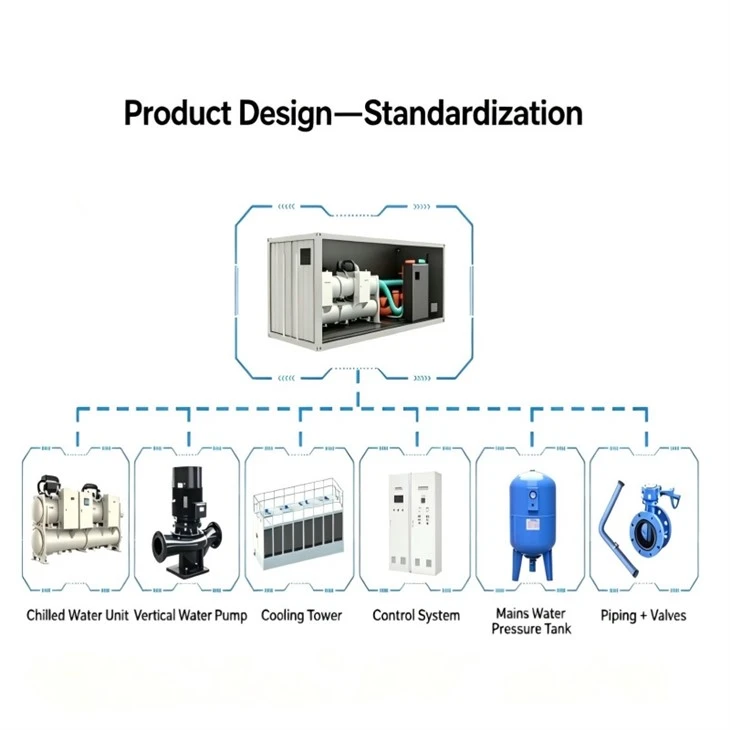

The complete chiller plant - chillers, pumps, cooling towers, plate heat exchangers, expansion tanks, piping, and controls - is factory-assembled and pre-commissioned as a single integrated solution. This eliminates on-site equipment matching issues, reduces installation complexity, and significantly shortens project timelines.
Superior Part-Load Efficiency
Commercial buildings typically operate at partial load for most of the year - mild weather, evenings, and weekends. The system is optimized for exceptional part-load efficiency through variable-speed drives, EC fans, and intelligent sequencing control - significantly reducing energy costs during off-peak periods while maintaining comfort.
Intelligent Building Integration

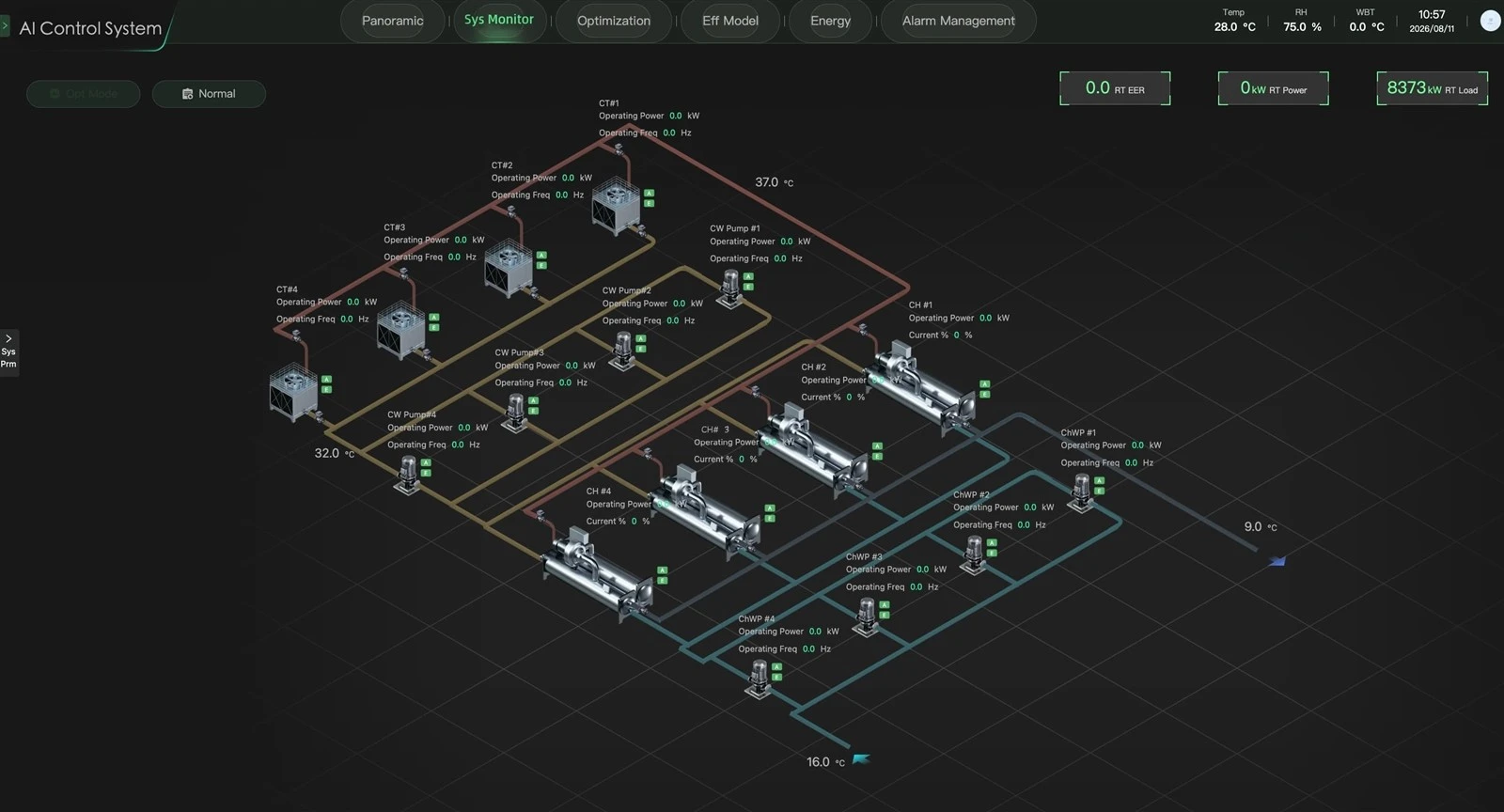

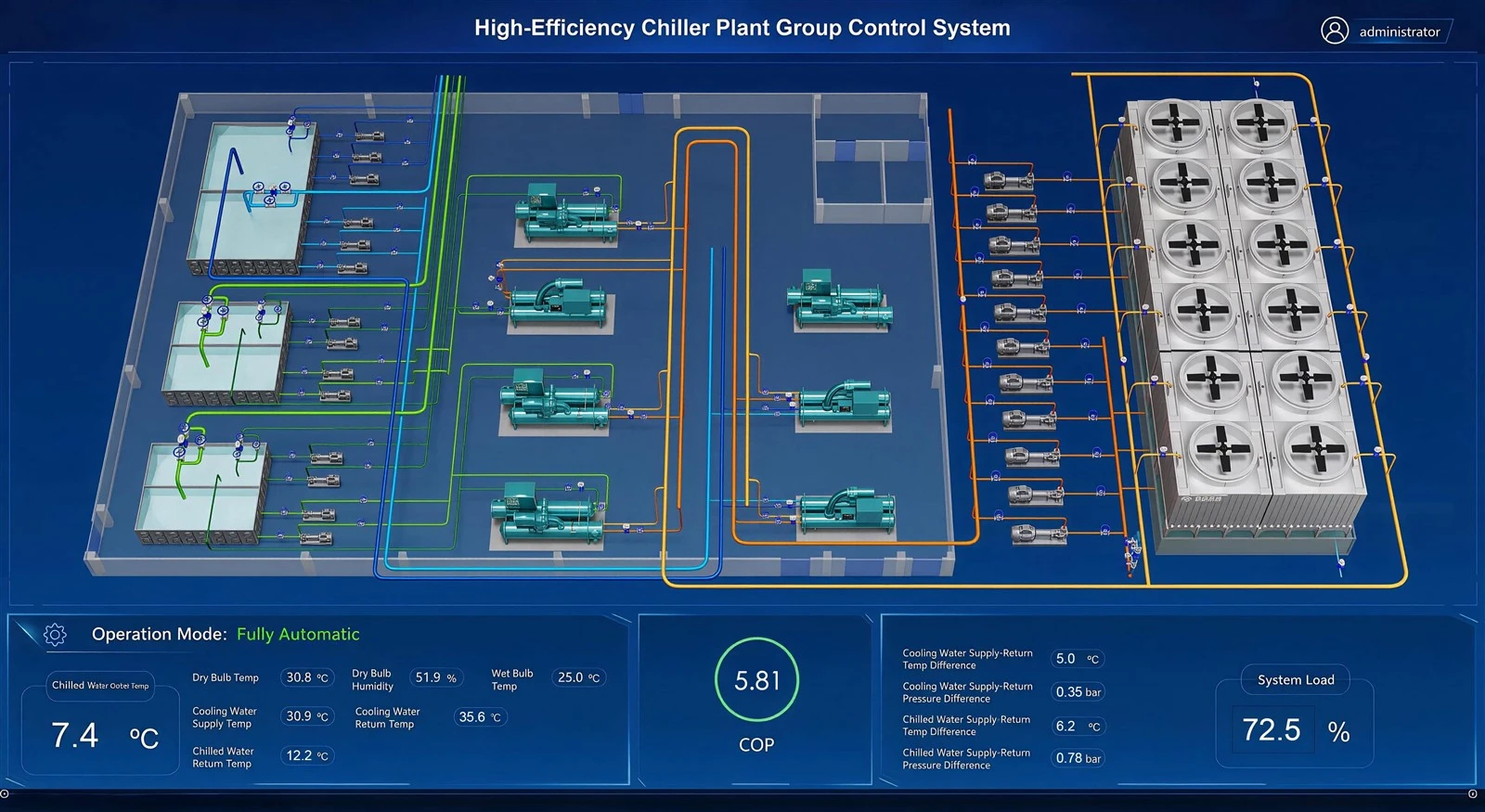

Equipped with a centralized monitoring and management platform with standard building automation system (BAS) communication protocols. Supports seamless integration with building BMS for coordinated control and energy optimization. Intelligent sequencing and load-following strategies automatically adjust chiller plant operation based on real-time building load, weather conditions, and occupancy schedules.
Total Solution - Chiller Plant to Terminal Equipment
We deliver the complete cooling chain - from the central chiller plant to terminal equipment including AHUs for lobbies and large spaces, and FCUs for individual zones - all from a single source. This ensures perfect system matching, simplifies procurement, and guarantees consistent quality across all components.
Flexible Deployment & Rapid Delivery

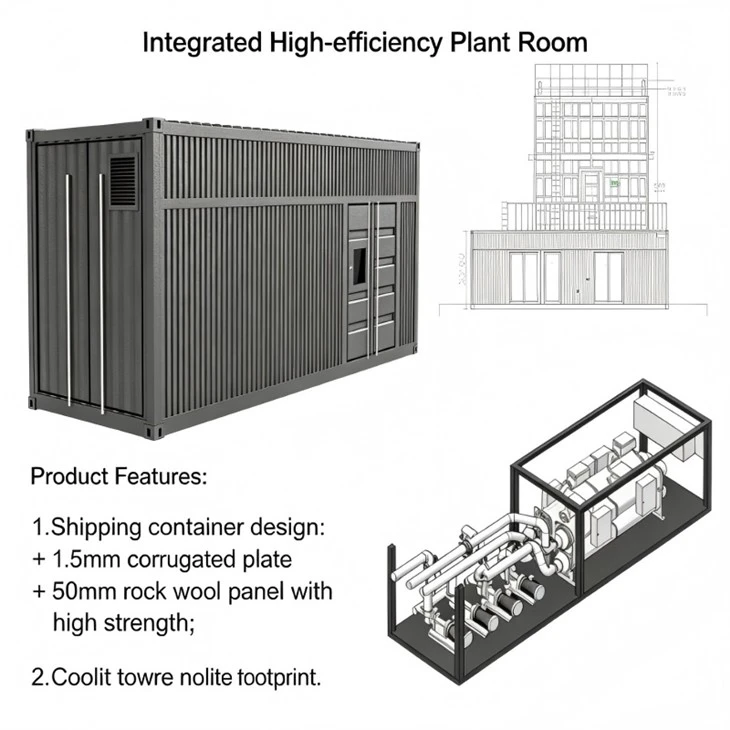

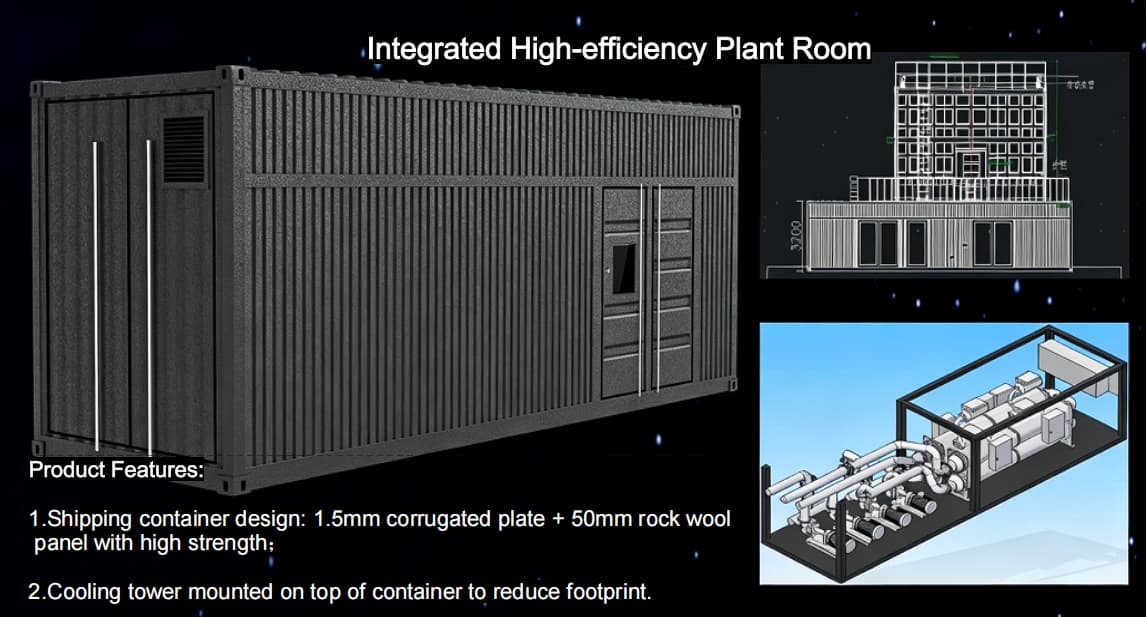

Available in multiple configurations - compact indoor plant for equipment rooms or outdoor version for rooftop or courtyard installation. Factory pre-assembled and pre-commissioned, requiring only power connection and water piping on-site.
Applications
- Office Buildings & Corporate Headquarters
- Commercial Complexes & Shopping Malls
- Hotels & Resorts
- Hospitals & Healthcare Facilities
- Educational Campuses & Schools
- Government & Public Buildings
- Mixed-Use Developments
Technical Advantages
Exceptional Energy Efficiency
Magnetic bearing centrifugal chillers deliver IPLV up to 10+ and COP 6.0~7.0+
Minimal Building Space Occupation
Compact integrated design maximizes rentable/usable building space
Integrated Plant Delivery
Complete factory-assembled chiller plant, ready for on-site connection
Total Solution - Source to Terminal
Complete cooling chain from chiller plant to AHUs and FCUs - all from a single source
Superior Part-Load Efficiency
Optimized for typical commercial load variations
Intelligent BAS Integration
Standard communication protocols for seamless building system integration
Multiple Configuration Options
Air-cooled, water-cooled, or dual-cool source options available
Green Building Certification Support
Contributes to LEED and other green building certification requirements
Rapid Deployment
Factory pre-assembled and pre-commissioned, significantly reducing installation time
System Selection Reference
|
Selection Dimension |
Available Options |
Application Scenario |
|
Cooling Source Type |
Air-Cooled / Water-Cooled / Dual Cool Source |
Selected based on water availability, climate, and building requirements |
|
Compressor Type |
Screw / Centrifugal / Magnetic Bearing Centrifugal |
Selected based on cooling capacity, efficiency targets, and lifecycle cost considerations |
|
Capacity Range |
100RT–3,000RT (Reference values - actual capacity customized based on project requirements) |
Selected based on building cooling load and future expansion plans |
|
Building Integration |
Indoor Plant Room / Outdoor Installation |
Selected based on available space and site conditions |
|
Terminal Equipment |
AHUs / FCUs / Specialty Units |
Selected based on zone requirements and air distribution needs |
High-Efficiency Integrated Chiller Plant delivers high-performance, space-efficient, and intelligent cooling infrastructure for commercial buildings through advanced chiller technology, integrated plant delivery, and complete cooling chain coordination - enabling optimal building performance, reduced operating costs, and enhanced occupant comfort while maximizing the economic value of building space.
Note: The above system description serves as a reference for standard functionality and architecture, intended to demonstrate core capabilities. Capacity ranges are provided for reference purposes - actual capacity is customized based on project requirements and product characteristics. Final configurations are subject to project-specific selection. For inquiries, please contact us through any of the channels listed on our "Contact Us" page, and we will provide preliminary solution recommendations based on your specific project needs.
