Product Overview
Direct Expansion Air Handling Units are self-contained, DX coil-equipped air handling solutions designed for applications where chilled water systems are not available or where independent cooling is preferred. The AHU-DX Series integrates direct expansion cooling coils directly into the air handling unit, eliminating the need for a separate chilled water plant and associated piping - delivering a complete, self-contained air conditioning system in a single package.
The series supports both mixed air condition and fresh air condition applications, with airflow capacities ranging from 2,750 to 59,300 m³/h for mixed air and 2,500 to 12,400 m³/h for 100% fresh air. Static pressure options from 300 to 500 Pa ensure compatibility with various ductwork configurations, making the AHU-DX Series suitable for a wide range of commercial and industrial applications where independent, refrigerant-based cooling is required.
Core Features
Self-Contained Direct Expansion Configuration
The integrated DX coil design eliminates the need for chilled water systems, cooling towers, and associated water treatment equipment. Each unit is a complete, self-contained air conditioning system that requires only electrical power and refrigerant piping connections, significantly simplifying installation and reducing initial investment costs.
Mixed Air & Fresh Air Condition Options
Available in both mixed air condition and fresh air condition configurations to suit different application requirements. Mixed air condition units handle recirculated air with fresh air mixing for energy-efficient ventilation, while fresh air condition units process 100% outdoor air for dedicated ventilation applications requiring complete air changes.

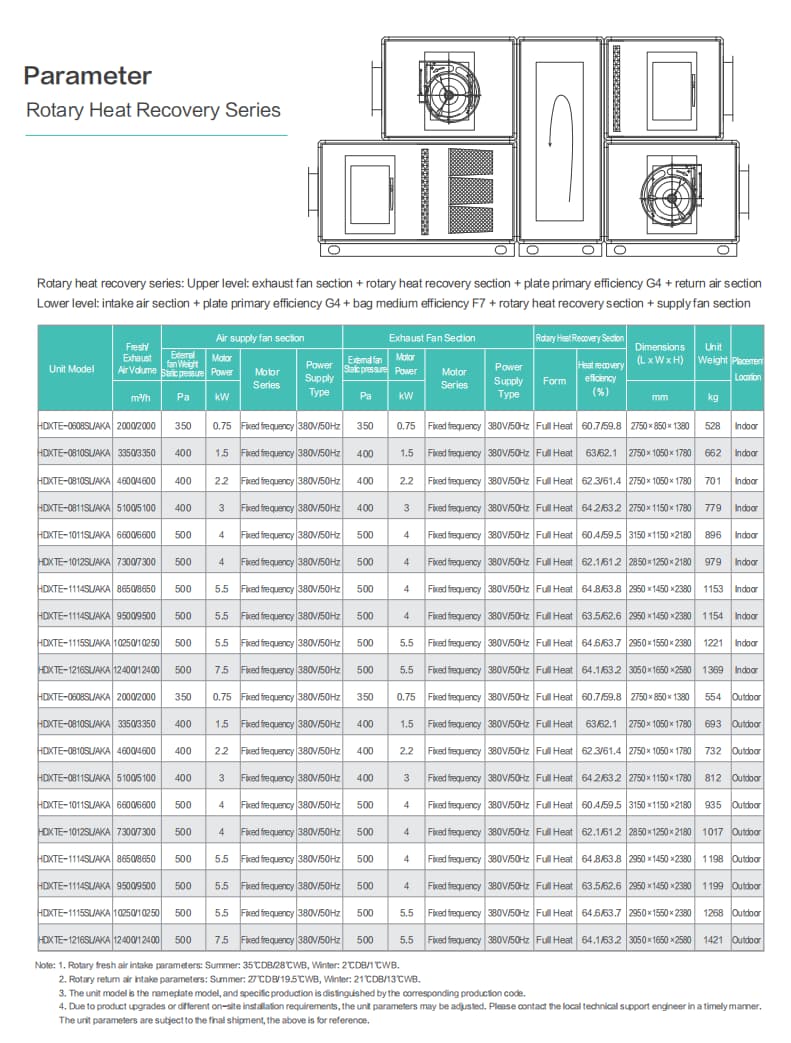

Customizable Heat Recovery Options
Optional rotary heat exchanger and plate heat exchanger configurations available to capture waste energy from exhaust air and transfer it to incoming fresh air. This significantly reduces heating and cooling loads, improving overall system energy efficiency and reducing operational costs in ventilation-intensive applications.
Flexible Installation - Indoor & Outdoor
Supports both indoor and outdoor installation configurations to accommodate diverse site conditions. Indoor units are designed for equipment room installation, while outdoor units feature weather-resistant construction for rooftop or exterior placement. This flexibility ensures seamless integration regardless of available space.
Optimized Static Pressure Range
Static pressure options from 300 to 500 Pa provide the flexibility to overcome ductwork resistance in medium to long air distribution systems. This ensures adequate airflow delivery even with extended duct runs, diffusers, and other air distribution components.
Rugged Construction for Dependable Operation
Built with robust construction and quality components to ensure reliable operation in demanding environments. The design incorporates corrosion-resistant materials and protective finishes to withstand the rigors of continuous operation.
Applications
-
Commercial Buildings Without Central Chilled
-
Water
Industrial Facilities & Manufacturing Plants
-
Retail Spaces & Shopping Centers
- Office Buildings & Business Parks
- Schools & Educational Facilities
-
Healthcare Facilities & Clinics
- Ventilation-Intensive Applications Requiring 100% Fresh Air
Technical Advantages
Self-Contained DX System
No chilled water plant, cooling towers, or water treatment required - simple, independent cooling solution
Mixed Air & Fresh Air Configurations
Flexible operation for recirculated or 100% outdoor air applications
Customizable Heat Recovery
Rotary or plate heat exchanger options for improved energy efficiency
Flexible Installation - Indoor & Outdoor
Adaptable to diverse site conditions and space availability
Optimized Static Pressure Range
300–500 Pa for medium to long air distribution systems
Robust Construction
Dependable operation in demanding commercial and industrial environments
Independent Cooling Solution
Ideal for applications without access to chilled water systems

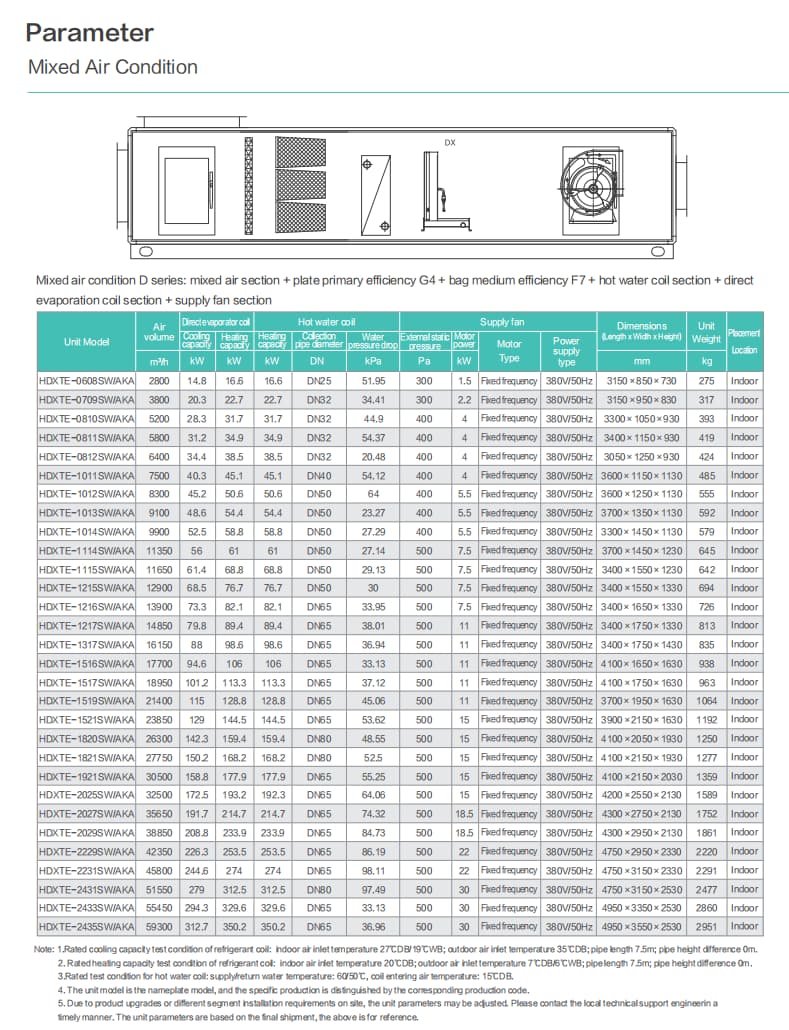

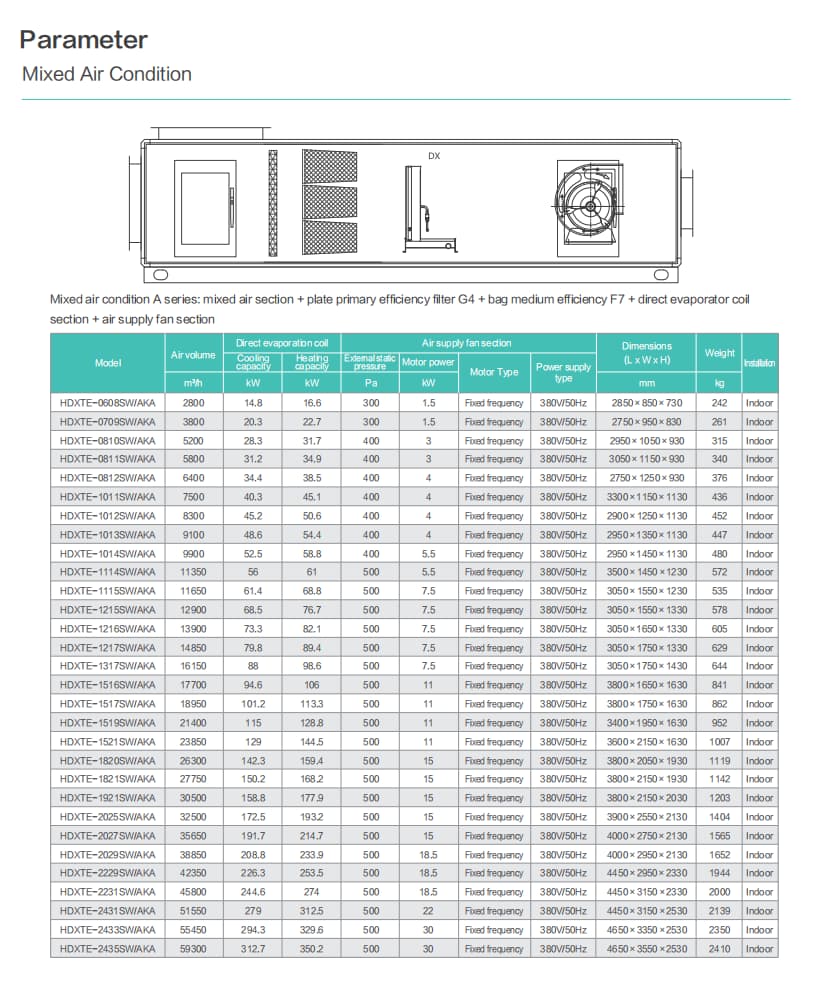

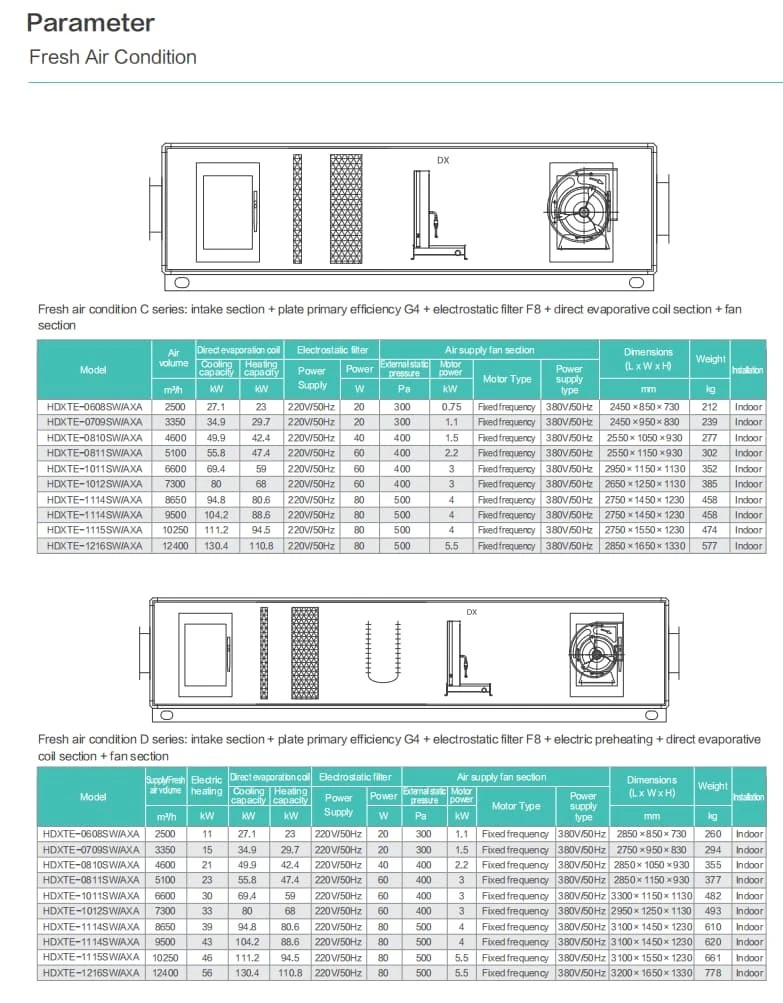

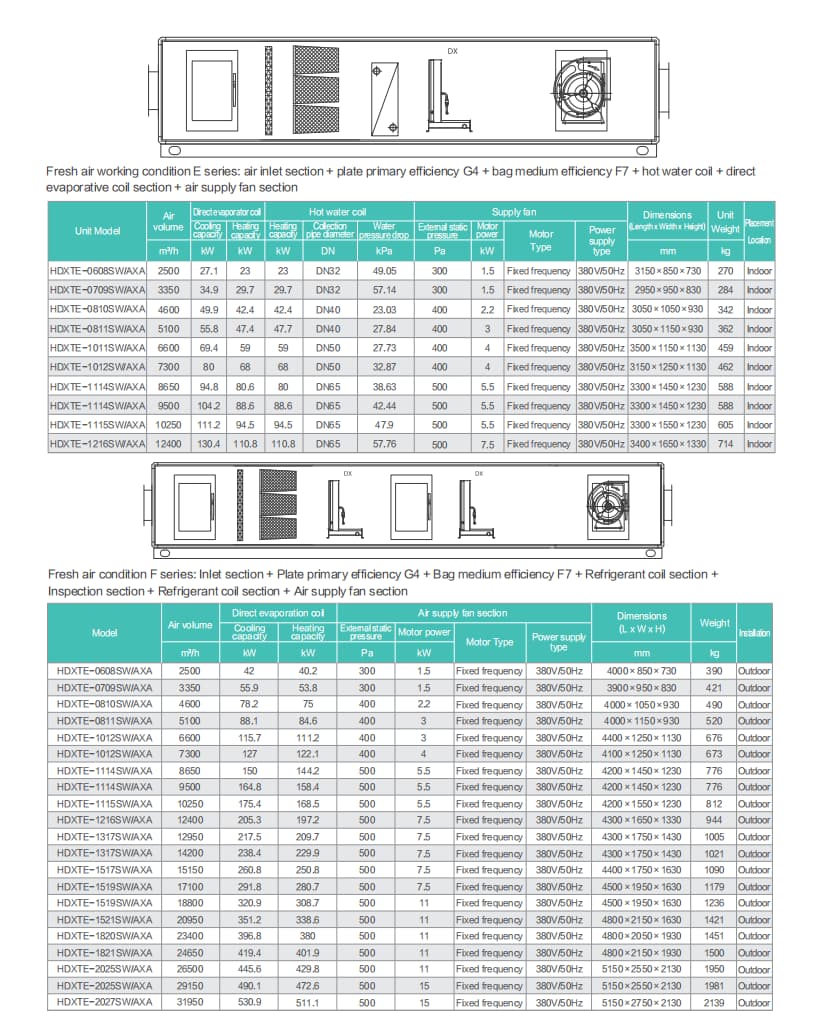

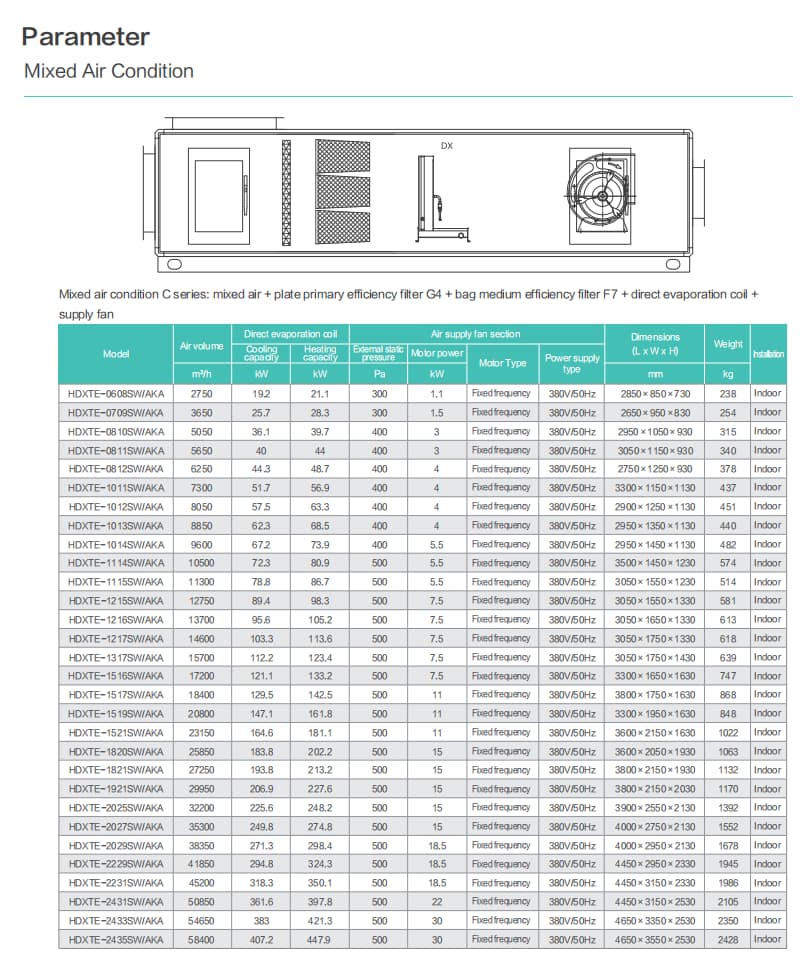

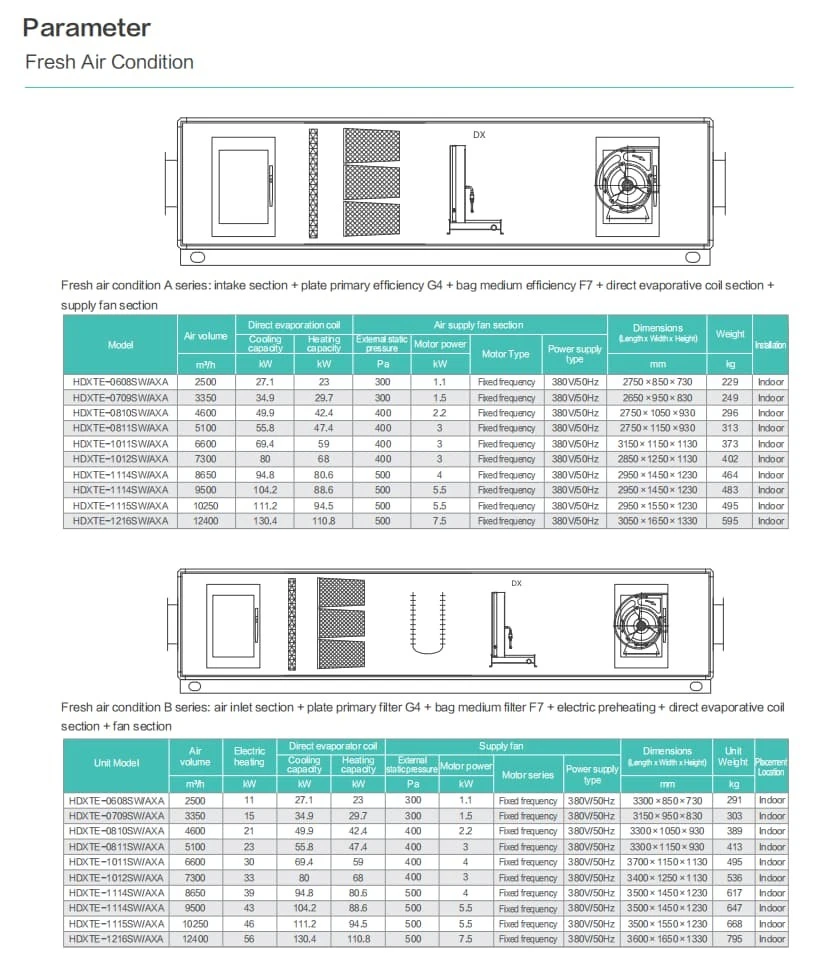

System Selection Reference
|
Selection Dimension |
Available Options |
Application Scenario |
|
Operating Condition |
Mixed Air Condition / Fresh Air Condition |
Selected based on air treatment requirements |
|
Air Flow Capacity (Mixed Air) |
2,750 – 59,300 m³/h |
Selected based on space ventilation and cooling/heating load requirements |
|
Air Flow Capacity (Fresh Air) |
2,500 – 12,400 m³/h |
Selected based on 100% outdoor air ventilation requirements |
|
Heat Recovery Type |
Rotary Heat Exchanger / Plate Heat Exchanger / None |
Selected based on energy efficiency requirements and budget |
|
Installation Location |
Indoor / Outdoor |
Selected based on available space and site conditions |
|
Static Pressure |
300 – 500 Pa |
Selected based on ductwork resistance and air distribution requirements |
|
Voltage |
380V 3P 50Hz |
- |
Direct Expansion Air Handling Units deliver self-contained, flexible, and efficient air handling solutions through integrated DX cooling, customizable configurations, and robust construction - providing independent, reliable air conditioning for applications where chilled water systems are not available or practical.
Note: The above specifications represent standard configurations and are intended for reference only. Actual product specifications may vary based on project requirements. For detailed technical data, customized configurations, or specific selection assistance, please contact us through any of the channels listed on our "Contact Us" page. Our technical team will provide tailored recommendations based on your specific project needs.
