Product Overview

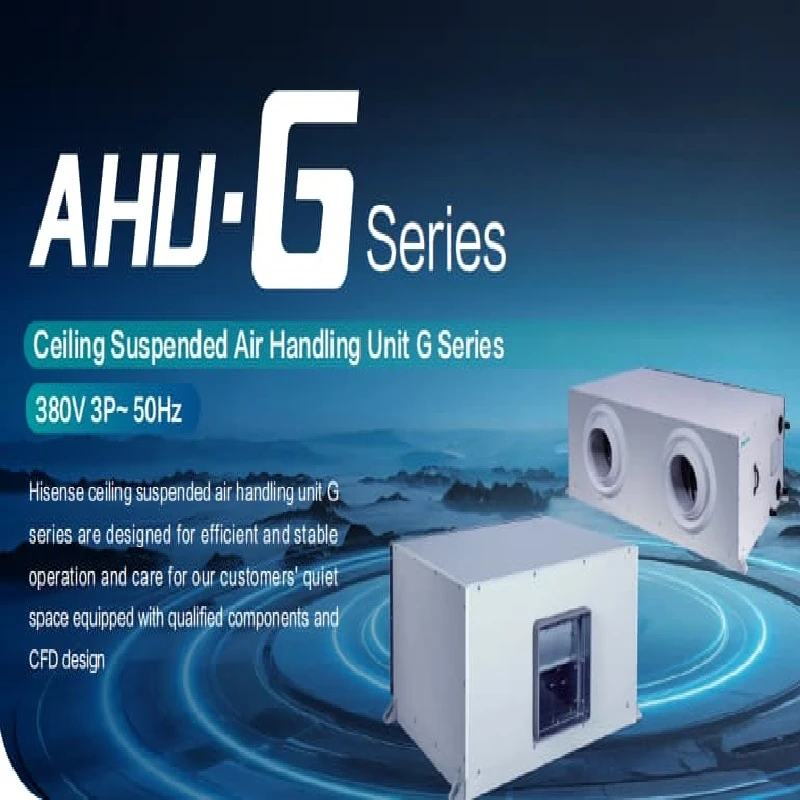

Ceiling Suspended Air Handling Units are space-saving, overhead-mounted air handling solutions designed for applications where floor space is limited or where ceiling installation is preferred. The AHU-G Series is suspended directly from the ceiling structure, eliminating the need for dedicated equipment rooms and freeing up valuable floor space for other uses.
The units feature a robust, compact design with corrosion-resistant components, making them suitable for a wide range of commercial and industrial environments. With airflow capacities ranging from 2,000 to 15,000 m³/h and cooling capacities from 11.5 to 86.5 kW, the AHU-G Series delivers reliable, efficient air handling in a suspended package that is both easy to install and maintain.
Core Features
Space-Saving Suspended Design
The ceiling suspended configuration eliminates the need for a dedicated equipment room, maximizing usable floor space. The unit is securely suspended from the ceiling structure with factory-verified hoisting safety, ensuring reliable and safe installation. This makes it particularly suitable for applications where floor space is at a premium or where equipment room construction is impractical.
Flexible Configuration Options
Available in both standard units and long-range jet units to suit different air distribution requirements. The long-range jet configuration is ideal for large spaces requiring extended throw distances, ensuring conditioned air reaches distant corners of the facility.

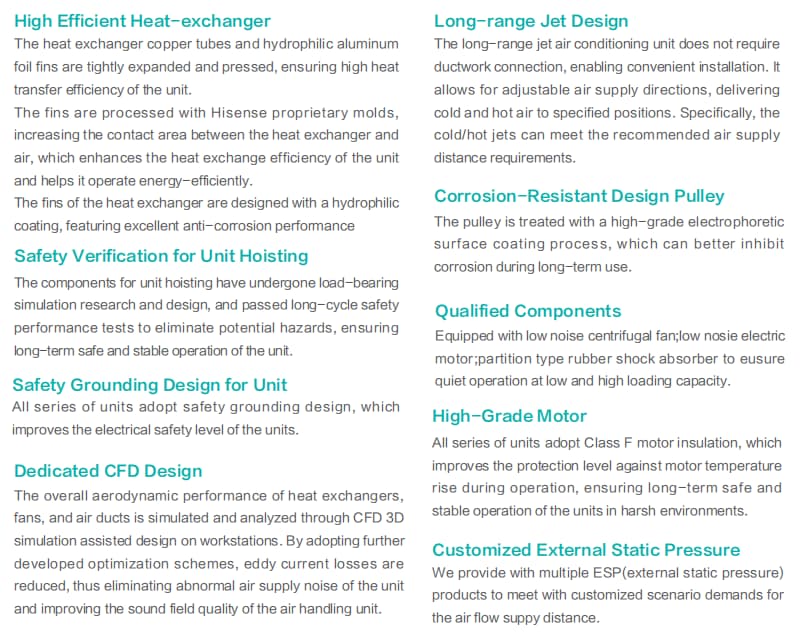

High-Efficiency Heat Exchanger
Equipped with high-performance heat exchangers designed for optimal heat transfer efficiency. The coil geometry and fin design are optimized to maximize cooling and heating capacity while minimizing air-side pressure drop, contributing to overall system energy efficiency.
Corrosion-Resistant Construction
Features corrosion-resistant design pulleys and durable construction materials to withstand demanding environments. This ensures long-term reliability and reduced maintenance requirements, particularly in applications with exposure to moisture, chemicals, or other corrosive elements.
Customizable Pipe Connections
Chilled water and condensate pipe diameters can be customized based on project requirements, providing flexibility to match site-specific piping configurations and simplifying installation coordination.
Applications
-
Industrial Workshops & Manufacturing Facilities
-
Commercial Buildings & Retail Spaces
-
Warehouses & Logistics Centers
- Sports Facilities & Auditoriums
- Exhibition Halls & Convention Centers
-
Large Open-Plan Areas with Limited Floor Space
Technical Advantages
Space-Saving Suspended Installation
No dedicated equipment room required - maximizes usable floor space
Factory-Verified Hoisting Safety
Secure and reliable ceiling installation with verified safety standards
Flexible Air Distribution
Available in standard or long-range jet configurations to suit diverse space requirements
High-Efficiency Heat Exchanger
Optimized heat transfer performance for superior energy efficiency
Corrosion-Resistant Design
Durable construction for long-term reliability in demanding environments
Customizable Pipe Connections
Flexible connections tailored to
Compact Footprint
Minimal space occupation while delivering substantial airflow capacity
System Selection Reference
|
Selection Dimension |
Available Options |
Application Scenario |
|
Unit Type |
Standard Unit / Long-Range Jet Unit |
Selected based on space size and air throw requirements |
|
Air Flow Capacity |
2,000 – 15,000 m³/h |
Selected based on space ventilation and cooling load requirements |
|
Cooling Capacity |
11.5 – 86.5 kW |
Selected based on thermal load calculations |
|
Voltage |
380V 3P 50Hz |
- |
Ceiling Suspended Air Handling Units deliver space-efficient, reliable, and flexible air handling solutions for commercial and industrial applications through suspended installation, robust construction, and versatile configuration options - providing effective air distribution without consuming valuable floor space.
Note: The above specifications represent standard configurations and are intended for reference only. Actual product specifications may vary based on project requirements. For detailed technical data, customized configurations, or specific selection assistance, please contact us through any of the channels listed on our "Contact Us" page. Our technical team will provide tailored recommendations based on your specific project needs.
