Product Overview
Ceiling Mounted Air Handling Units are versatile, space-efficient air handling solutions designed for installation directly beneath the ceiling structure. The AHU-S Series offers a wide range of configurations to meet diverse commercial and industrial air handling requirements, featuring robust construction, flexible installation options, and reliable performance across various applications.
With airflow capacities ranging from 2,000 to 50,000 m³/h, the AHU-S Series delivers dependable air handling for spaces of all sizes. The ceiling mounted configuration eliminates the need for floor space allocation, making it an ideal choice for applications where valuable floor area must be preserved for other uses. Available in both horizontal and vertical installation types to suit different site conditions, the series provides comprehensive coverage from standard comfort conditioning to fresh air handling requirements.
Core Features
Flexible Installation Options
Available in both horizontal and vertical configurations to suit different site conditions and space constraints. The horizontal type is ideal for ceiling mounting in spaces with limited height, while the vertical type accommodates applications where floor mounting is preferred or required. This flexibility ensures seamless integration into diverse building layouts.
Wide Airflow Capacity Range
Covers a broad airflow spectrum from 2,000 to 50,000 m³/h, suitable for applications ranging from small commercial spaces to large industrial facilities. This extensive range allows for precise matching to project requirements, ensuring optimal performance without over- or under-sizing.
Dual Operating Conditions
Available in both standard condition and fresh air condition configurations. The standard condition units are designed for recirculated air applications, while fresh air condition units handle 100% outdoor air for ventilation requirements. This versatility enables the AHU-S Series to address a wide variety of air treatment needs.
Four-Pipe & Additional Heat Coil Options
Optional four-pipe configurations enable simultaneous cooling and heating, providing year-round temperature and humidity control for demanding applications. Additional heat coil options offer enhanced heating capacity for winter conditions, ensuring occupant comfort throughout the year.

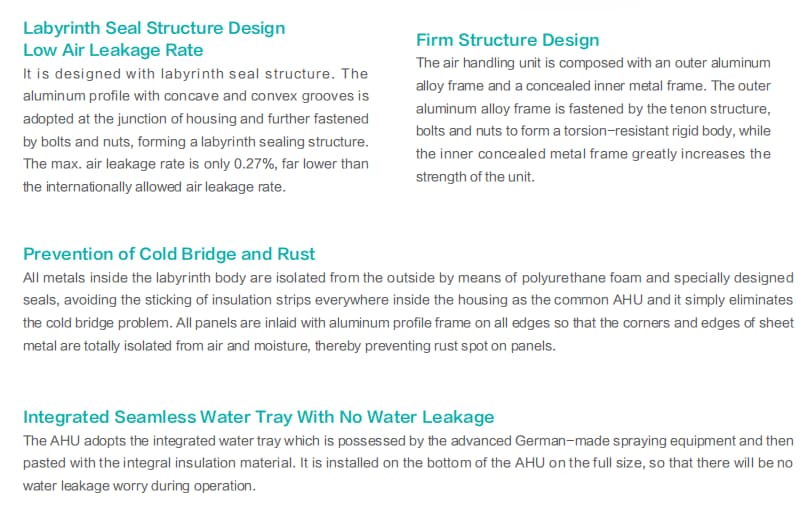

Integrated Seamless Water Tray - No Water Leakage
Features a factory-installed, integrated seamless water tray that eliminates leakage concerns. The tray is manufactured using advanced German spraying equipment, ensuring superior quality and durability. The full-size insulation installation on the bottom of the unit guarantees worry-free operation without water leakage.
Applications
-
Commercial Buildings & Office Spaces
-
Shopping Malls & Retail Centers
-
Hotels & Hospitality Facilities
- Hospitals & Healthcare Facilities
- Industrial Plants & Manufacturing Facilities
-
Educational Institutions & Auditoriums
- Large Open-Plan Areas Requiring Ceiling Mounted Air Distribution
Technical Advantages
Flexible Ceiling Mounted Installation
Preserves valuable floor space - horizontal and vertical configurations available
Wide Airflow Capacity
2,000 – 50,000 m³/h covers diverse application needs
Standard & Fresh Air Conditions
Dual configurations for recirculated or 100% outdoor air applications
Four-Pipe & Additional Heat Coil Options
Flexible configurations for simultaneous cooling/heating and enhanced heating capacity
Integrated Seamless Water Tray - No Water Leakage
Factory-installed, full-size insulation ensures worry-free operation
Customizable Configurations
Flexible options to match specific project requirements
Robust Construction
Durable design for long-term reliability in commercial and industrial environments
System Selection Reference
|
Selection Dimension |
Available Options |
Application Scenario |
|

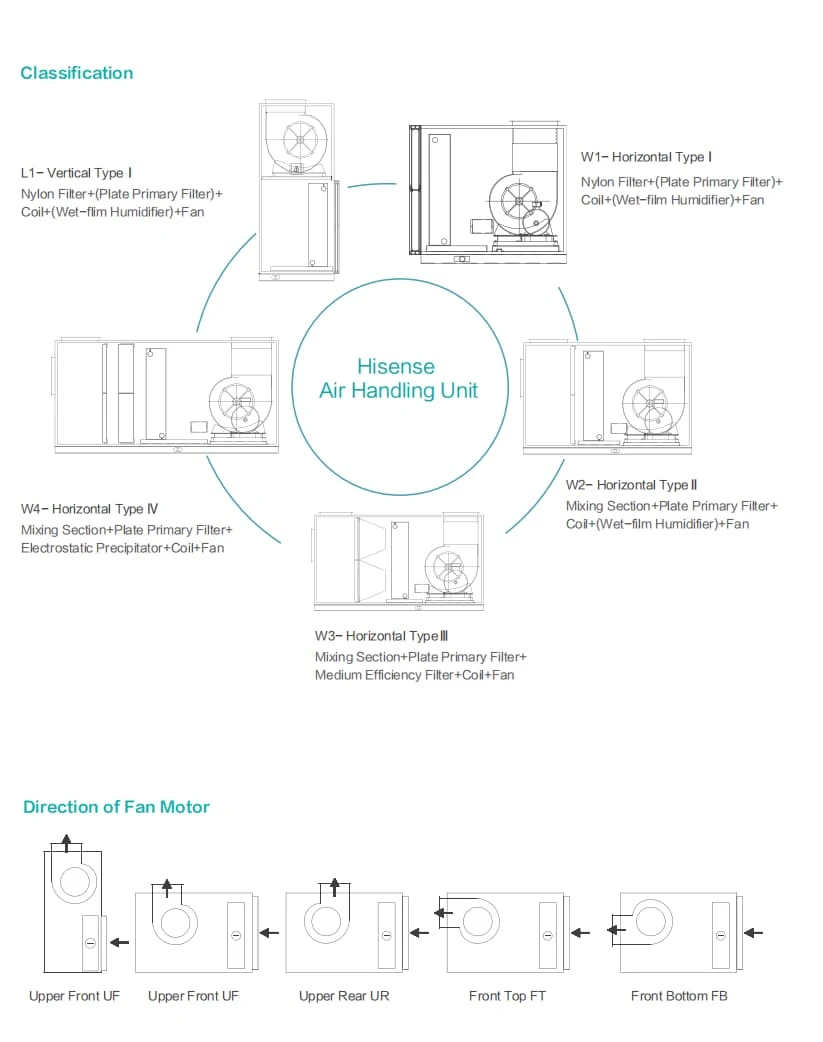

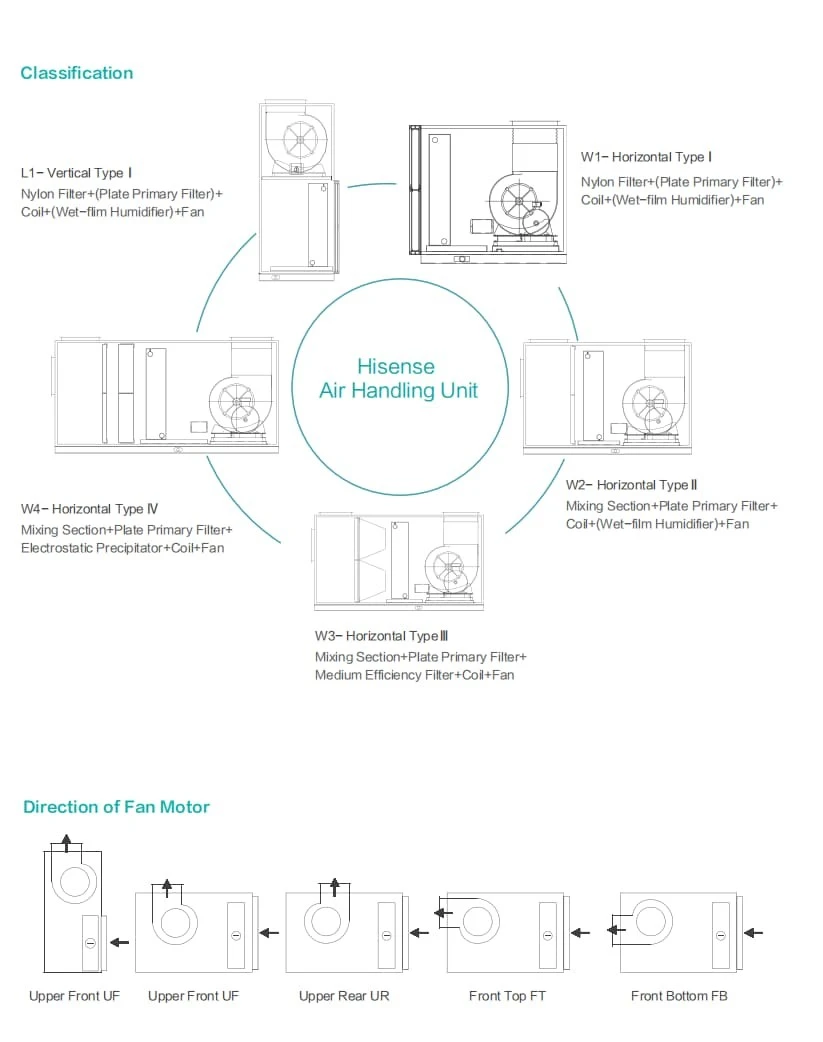

Installation Type |
Horizontal / Vertical |
Selected based on available space and site conditions |
|

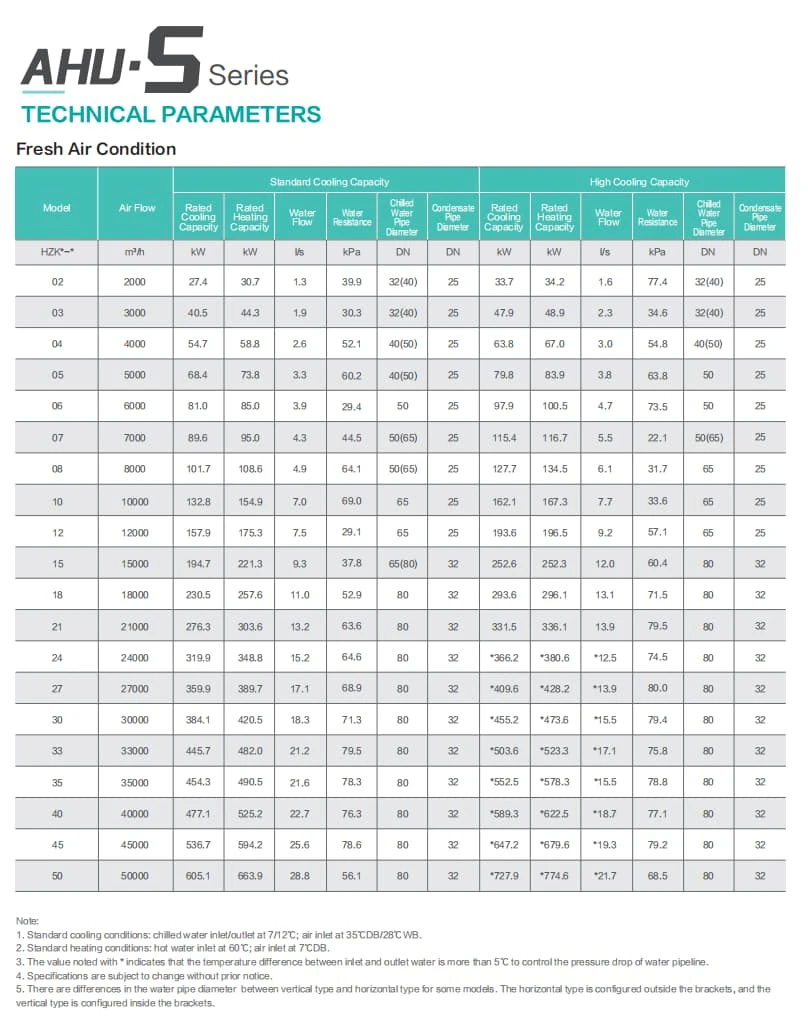

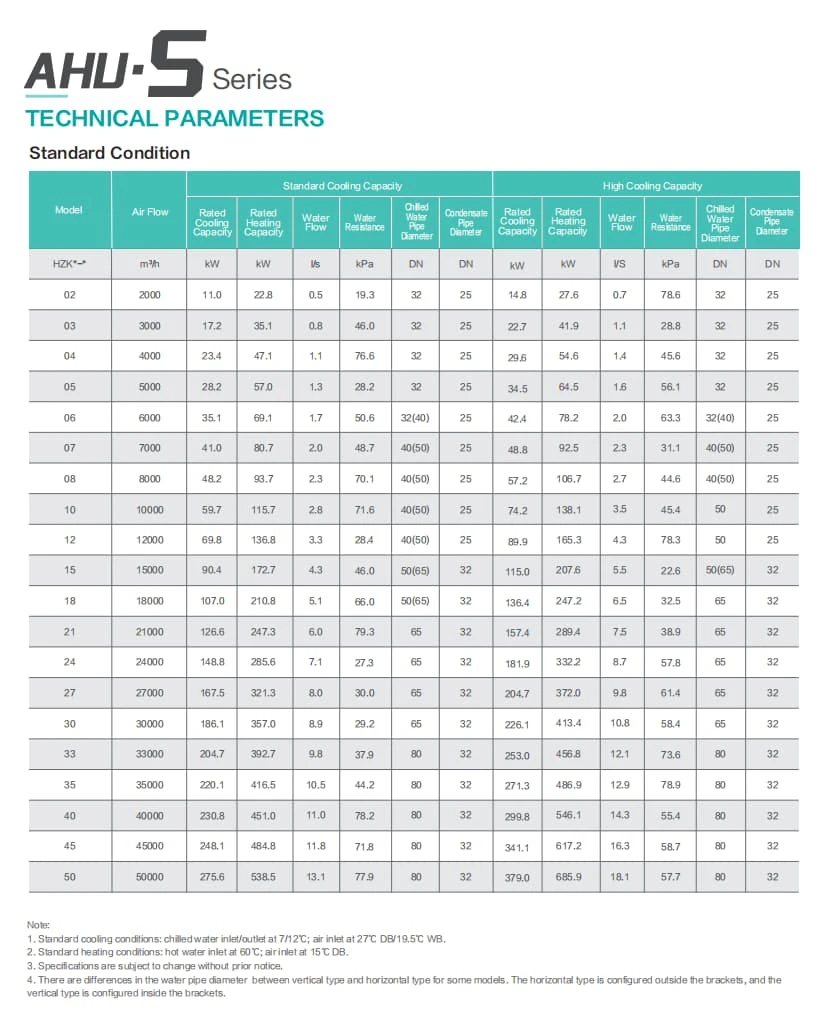

Operating Condition |
Standard Condition / Fresh Air Condition |
Selected based on air treatment requirements |
|
Air Flow Capacity |
2,000 – 50,000 m³/h |
Selected based on space ventilation and cooling/heating load requirements |
|

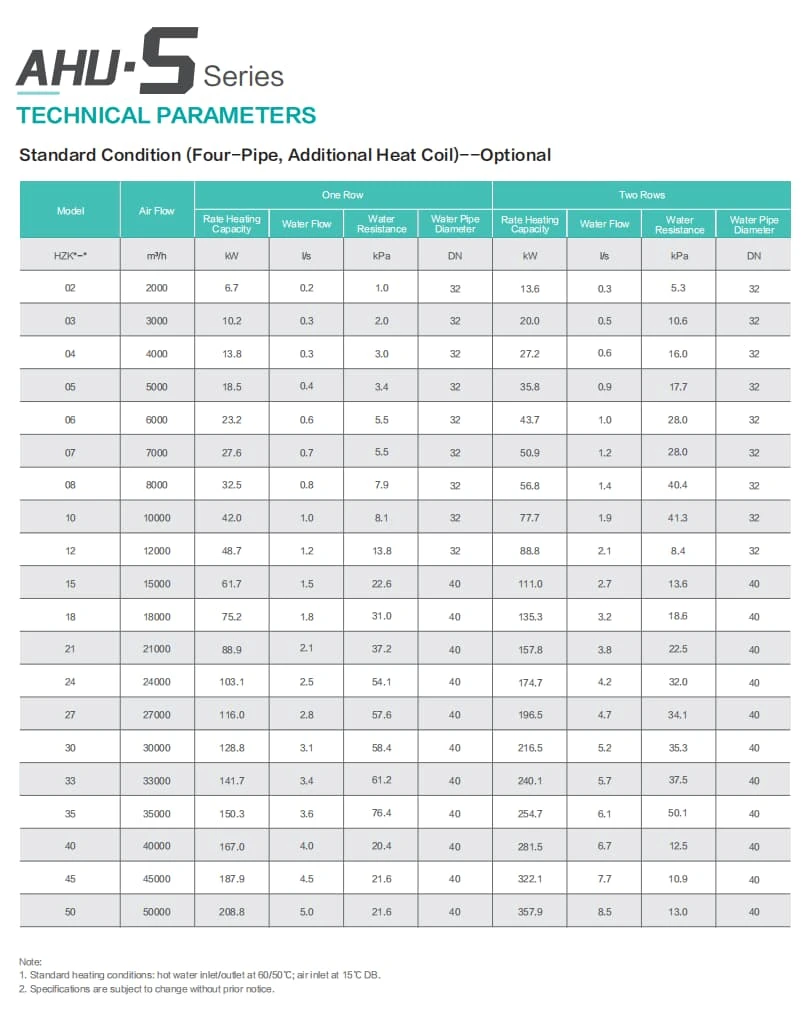

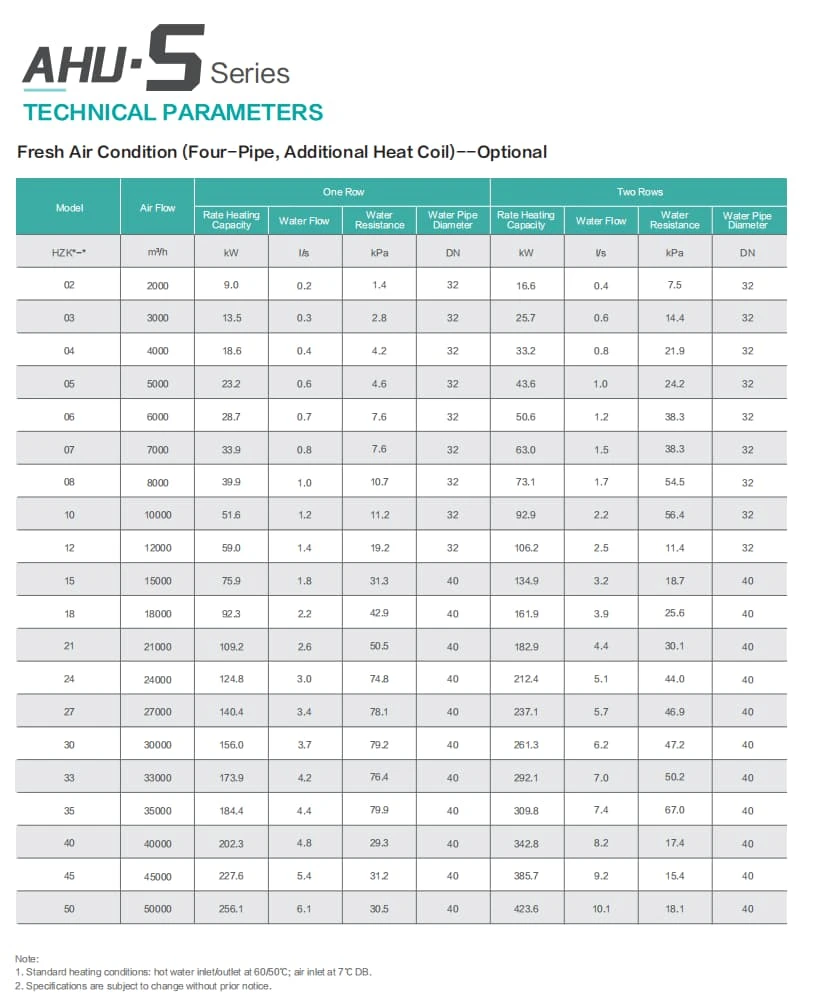

Coil Configuration |
Standard / Four-Pipe / Additional Heat Coil |
Selected based on simultaneous cooling/heating needs and winter heating requirements |
|
Voltage |
380V 3P 50Hz |
- |
Ceiling Mounted Air Handling Units deliver flexible, reliable, and space-efficient air handling solutions for commercial and industrial applications through versatile installation options, wide airflow coverage, and robust construction - providing effective air distribution while preserving valuable floor space.
Note: The above specifications represent standard configurations and are intended for reference only. Actual product specifications may vary based on project requirements. For detailed technical data, customized configurations, or specific selection assistance, please contact us through any of the channels listed on our "Contact Us" page. Our technical team will provide tailored recommendations based on your specific project needs.
