Water Conditioner for HVAC

Water treatment equipment is essential for maintaining the efficiency and longevity of HVAC water systems. Scaling, corrosion, biofouling, and suspended solids can significantly reduce heat exchange efficiency, increase energy consumption, and shorten equipment service life. Our comprehensive water treatment solutions address these challenges through physical, chemical, and filtration technologies - protecting chillers, cooling towers, pumps, piping, and terminal equipment from damage while reducing operating costs.

All products are designed with mechatronic integration, offering low resistance, high flow capacity, simple operation, and easy maintenance.

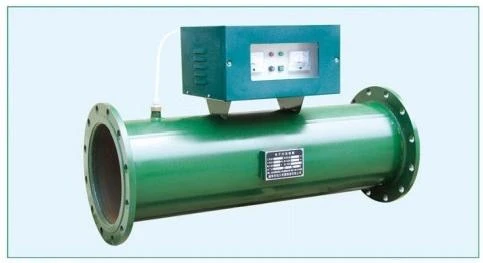

Electronic Water Treatment Unit

A physical water treatment device that generates a high-frequency electromagnetic field to prevent scaling and corrosion.

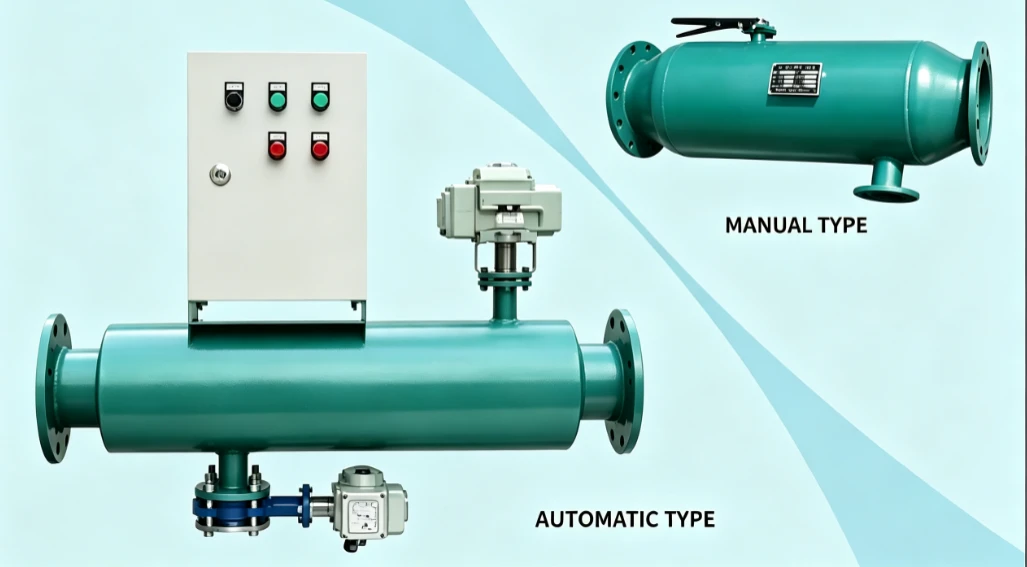

Backwash Strainer (Self-Cleaning Strainer)

Enables cleaning and discharge of the filter element without interrupting system operation. Features a unique valve plate design that reverses water flow through the strainer for self-cleaning - eliminating the need for disassembly.

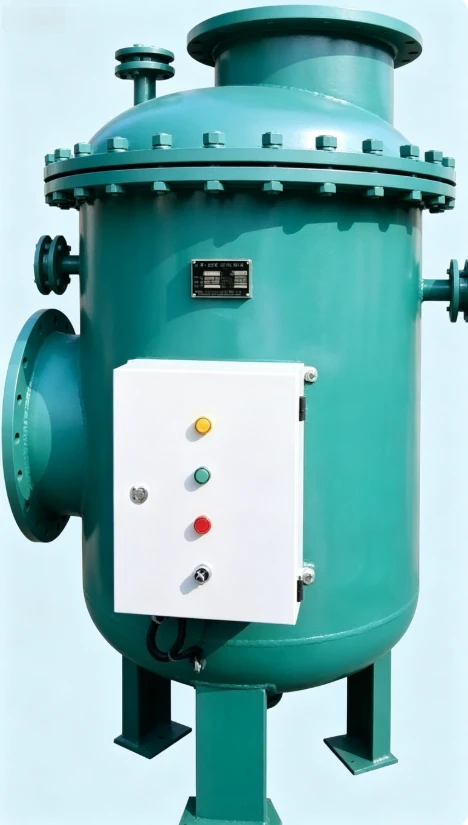

Full-Range Integrated Water Treatment Unit

Integrates a high-quality carbon steel shell, stainless steel screen, high-frequency electromagnetic field generator, corona field generator, and blowdown device. Through a three-in-one filtration system - combining active iron oxide film, mechanical variable-diameter orifice retention, and corona effect field - it adsorbs and removes hardness-forming substances and scale. Also provides corrosion protection, sterilization, and algae elimination.

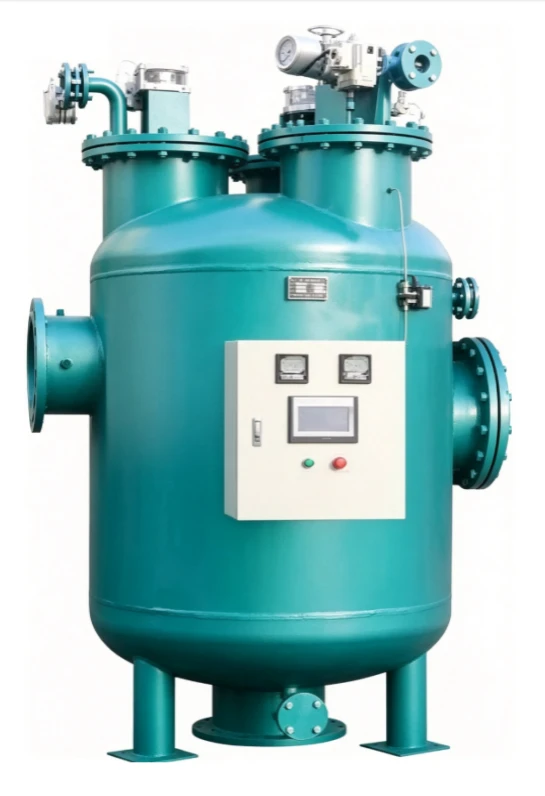

Multi-Phase Full-Range Integrated Water Treatment Unit

Features a stainless steel screen and high-frequency electromagnetic field generator for adsorption and removal of hardness substances. Equipped with a differential pressure sensor for automatic online debris discharge and screen cleaning. Offers scale prevention/removal, corrosion/rust protection, sterilization/algae elimination, ultra-fine filtration, and automatic blowdown.

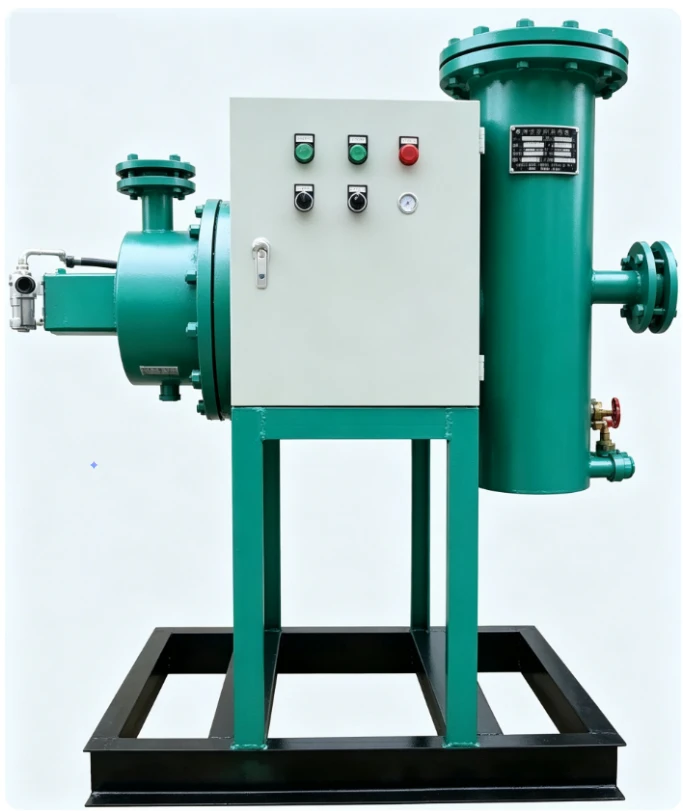

Side-Stream Water Treatment Unit (Open / Closed Loop)

Side-stream units treat a portion of the circulating water continuously without interrupting main system flow.

Open Loop: For cooling tower systems. Generates a 300V/m pulsed electric field to kill bacteria and algae, releases low-voltage pulsed energy to convert scale into aragonite crystals, and suppresses electrochemical corrosion.

Closed Loop: For chilled water systems. Similar treatment principles with specialized ultra-fine filtration for closed-loop conditions.

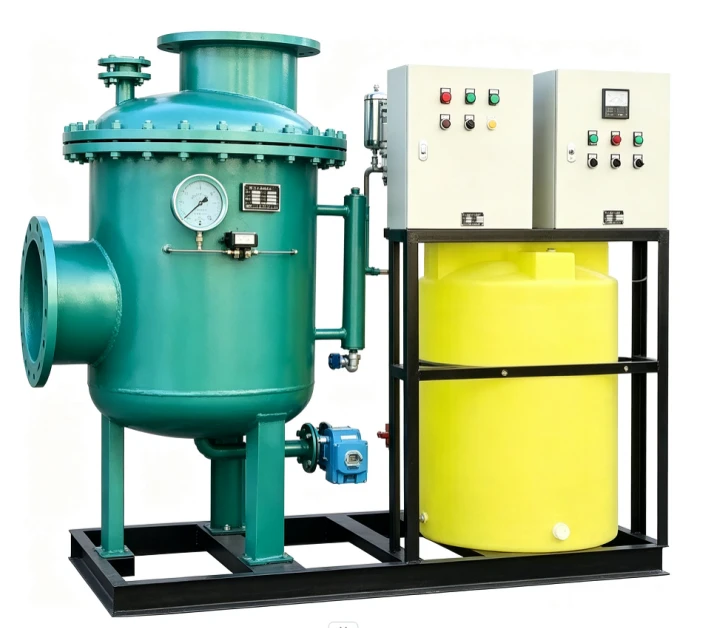

Physicochemical Integrated Water Treatment Unit

Combines a full-range integrated water treatment unit with an automatic chemical dosing system. Provides filtration, scale removal, corrosion protection, and sterilization through physical means, while chemical dosing adds targeted treatment for specific water quality conditions.

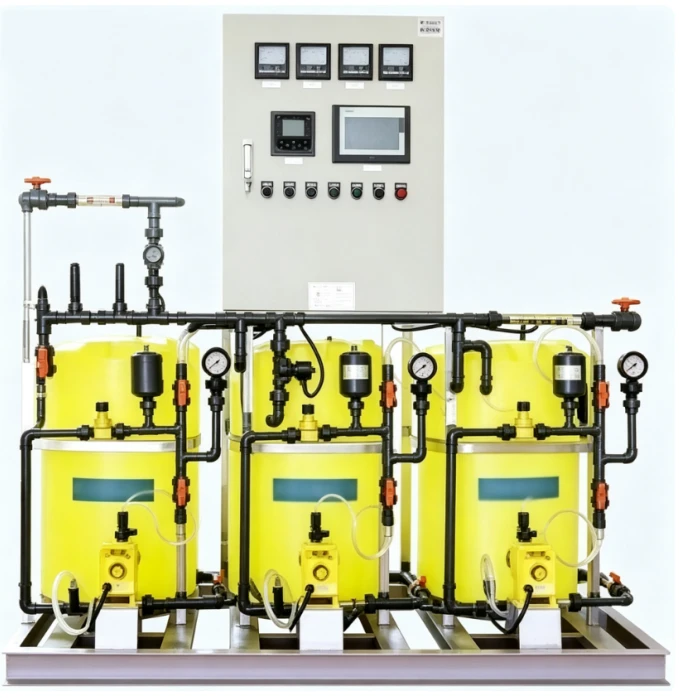

Full-Automatic Chemical Dosing System

Uses advanced automatic control to continuously track and adjust chemical dosage. Metering pumps accurately inject chemicals for scale removal, oxygen removal, coagulation, acid/alkali addition, and other treatment requirements.

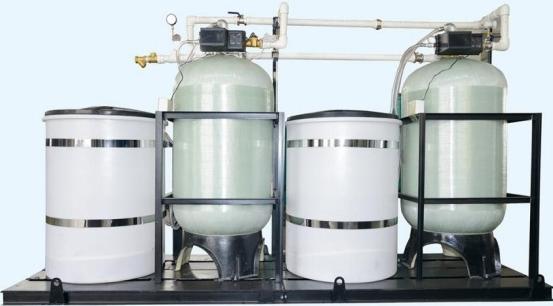

Full-Automatic Water Softener

Removes calcium and magnesium hardness ions from water through ion exchange resin. Features automatic regeneration controlled by time or flow meters.

Multi-Media Filter

Uses multiple filtration media (quartz sand, anthracite, activated carbon, manganese sand, etc.) under pressure to remove suspended solids and colloidal impurities. Effluent turbidity can reach below 3 degrees.
