Product Overview
The Circulation Pump for HVAC is a fundamental component in water-based heating, ventilation, and air conditioning systems. Its primary function is to circulate hot or chilled water through a building's piping network - from chillers and boilers to air handling units (AHUs), fan coil units (FCUs), radiators, and other terminal equipment. By providing the necessary hydraulic pressure to overcome pipe friction and system resistance, the circulation pump ensures that thermal energy is efficiently delivered to where it is needed, enabling precise temperature control and occupant comfort across commercial, industrial, and residential buildings.
Our HVAC circulation pumps are available in a wide range of configurations to suit diverse project requirements. Common types include:
- Chilled Water Circulation Pumps – Circulate cold water from chillers to air handling units and fan coil units for space cooling.
- Cooling Water Circulation Pumps – Move water between chillers and cooling towers to reject heat from the refrigeration cycle.
- Hot Water Circulation Pumps – Circulate heated water from boilers to radiators, underfloor heating systems, and terminal units for space heating.
- Booster Pumps – Provide additional pressure in systems with long pipe runs or elevation changes.

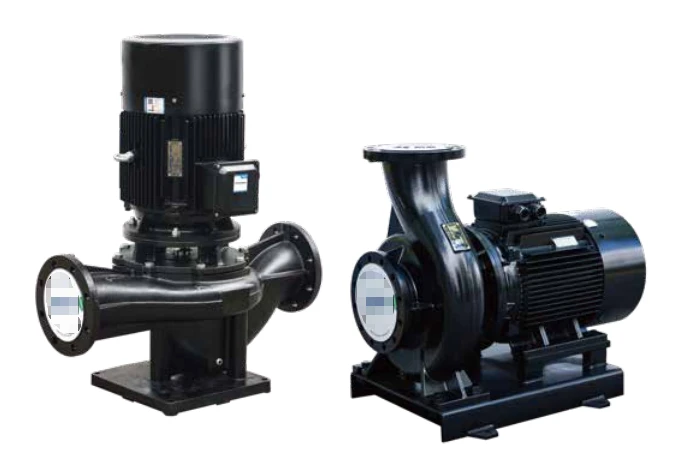

- The pumps are available in multiple structural forms to accommodate different installation requirements, including:

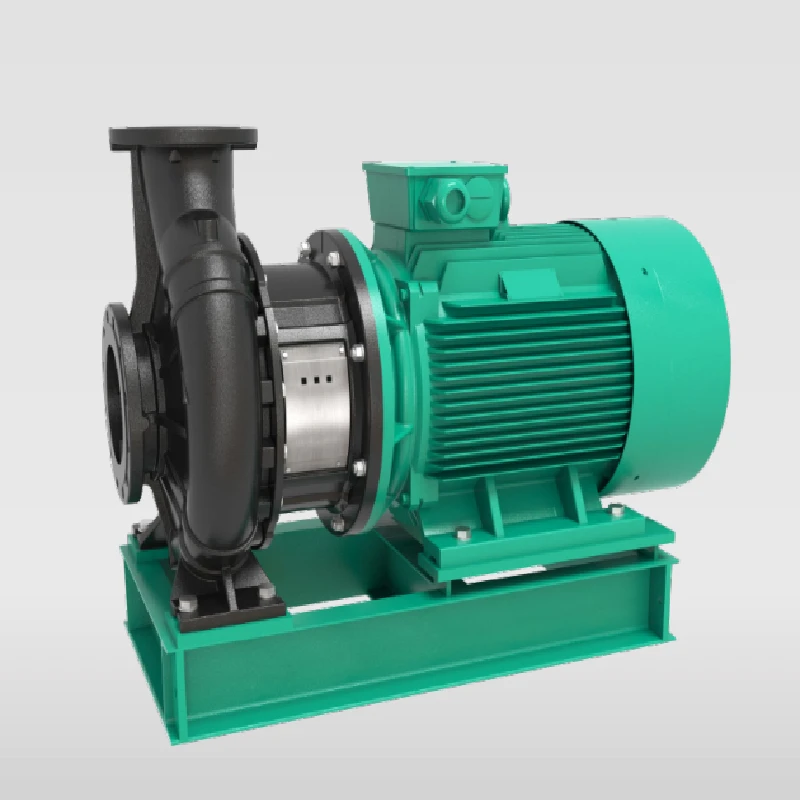

- End Suction Pumps – The most common type in HVAC applications, offering reliable performance for medium to large systems.
- In-Line Pumps – Compact design for direct installation into piping systems, ideal for space-constrained applications.
- Split Case Pumps – Suitable for large-scale, high-flow applications with easy maintenance access.
- Vertical Multi-Stage Pumps – Designed for high-head, low-flow applications where space is at a premium.
- Horizontal & Vertical Configurations – Available in both orientations to match specific plant room layouts.
Key Features
High Efficiency
Designed with advanced hydraulic models and high-efficiency motors to minimize energy consumption and reduce operating costs.
Reliable Operation
Built with high-quality materials and precision manufacturing to ensure long service life and dependable performance even under continuous operation.
Low Noise & Low Vibration
Engineered for quiet operation, making them suitable for noise-sensitive environments such as offices, hotels, hospitals, and residential buildings.
Wide Application Coverage
Available in a broad range of flow rates and head pressures to accommodate systems of all sizes, from small residential loops to large district cooling and heating networks.
Flexible Installation
Offered in both single-pump and duplex (duty/standby) configurations to meet varying reliability requirements. Duplex configurations allow for one pump to operate while the other serves as a backup, ensuring uninterrupted system operation during maintenance or in the event of a failure.
Control Flexibility
Available with fixed-speed or variable-speed drives to suit different system requirements, with control methods selected based on project-specific operational needs.
Easy Maintenance
Designed with features such as back pull-out construction (for end suction models) and top-removable designs (for in-line models) that allow for servicing without disturbing the piping system.
Applications
- Commercial Office Buildings & Shopping Malls
- Hotels, Hospitals & Healthcare Facilities
- Data Centers & Telecommunications Facilities
- Industrial Plants & Manufacturing Facilities
- Educational Institutions & Campus Buildings
- Residential & Multi-Family Housing
- District Heating & Cooling Networks
Selection Considerations
Selecting the right circulation pump for an HVAC system requires careful analysis of project-specific parameters, including:
System Flow Rate (Capacity)
Determined by the building's cooling and heating load calculations.
Total Dynamic Head
The pressure required to overcome pipe friction, fittings, valves, and elevation changes.
Fluid Properties
Temperature, viscosity, and the potential need for glycol mixtures in chilled water systems.
System Type
Open vs. closed loop systems affect pump selection, particularly regarding Net Positive Suction Head (NPSH) requirements.
Operating Schedule
Whether the system operates continuously, intermittently, or with variable loads influences the choice of fixed-speed vs. variable-speed drives.
Space Constraints
Plant room layout and available space determine whether horizontal, vertical, in-line, or end suction configurations are most suitable.
Note: The above product description serves as a general reference for standard functionality and applications. Actual pump selection, sizing, and configuration must be based on specific project requirements, including system flow rate, head pressure, fluid characteristics, and installation conditions. For detailed technical data, customized configurations, or selection assistance, please contact us through any of the channels listed on our "Contact Us" page. Our technical team will provide tailored recommendations based on your specific project needs.
