Product Overview
HVAC Valves are essential components in any heating, ventilation, and air conditioning system, responsible for controlling the flow, pressure, and direction of water, steam, or other fluids circulating throughout the system. From isolating sections of piping for maintenance to modulating flow rates for precise temperature control, valves play a critical role in ensuring system efficiency, safety, and reliability.
Our HVAC valve offerings cover a comprehensive range of manual and automated valves, supported by a selection of instrumentation for system monitoring and control. All valves are designed and manufactured to meet the stringent demands of HVAC applications - including chilled water, hot water, cooling water, steam, and condensate systems - ensuring long service life, dependable operation, and minimal maintenance.

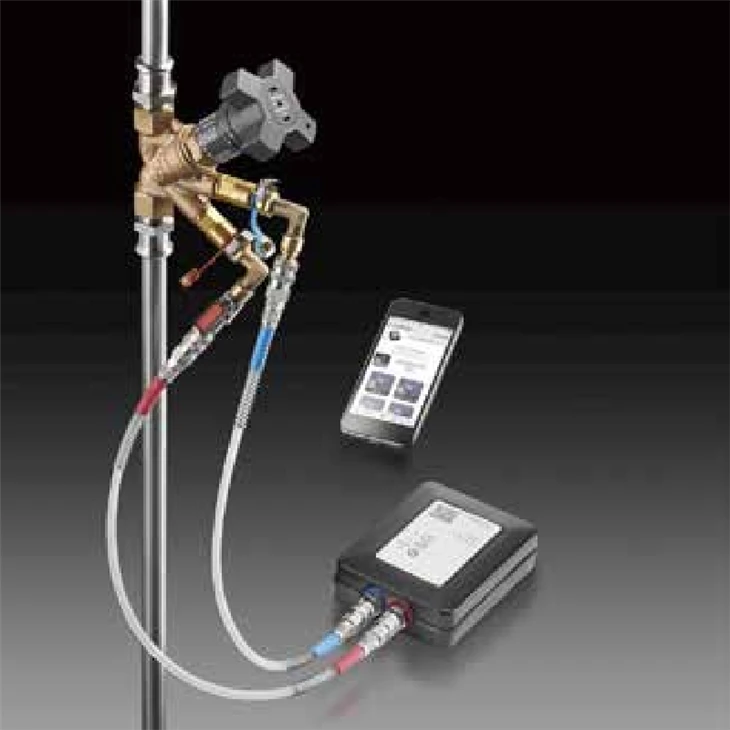

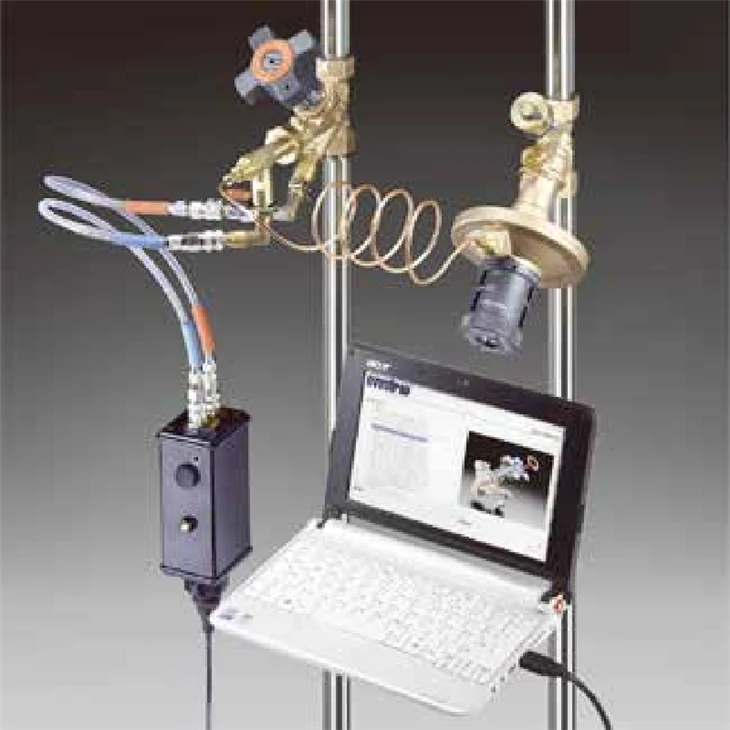

Precise Hydronic Balancing – Save Up to 20% Energy
As one of the most complex systems in a building, cooling systems can continuously improve building energy efficiency when operating at optimal performance.
A cooling system equipped with thermostatic control valves and hydronic balancing valves can save up to 20% in energy consumption. Moreover, stable water system control enhances occupant comfort - reaching and maintaining desired room temperatures more quickly. With our modular hydronic balancing solutions, you can transform your entire building into an efficient, reliable, and flexible system.
Common Valve Types by Function

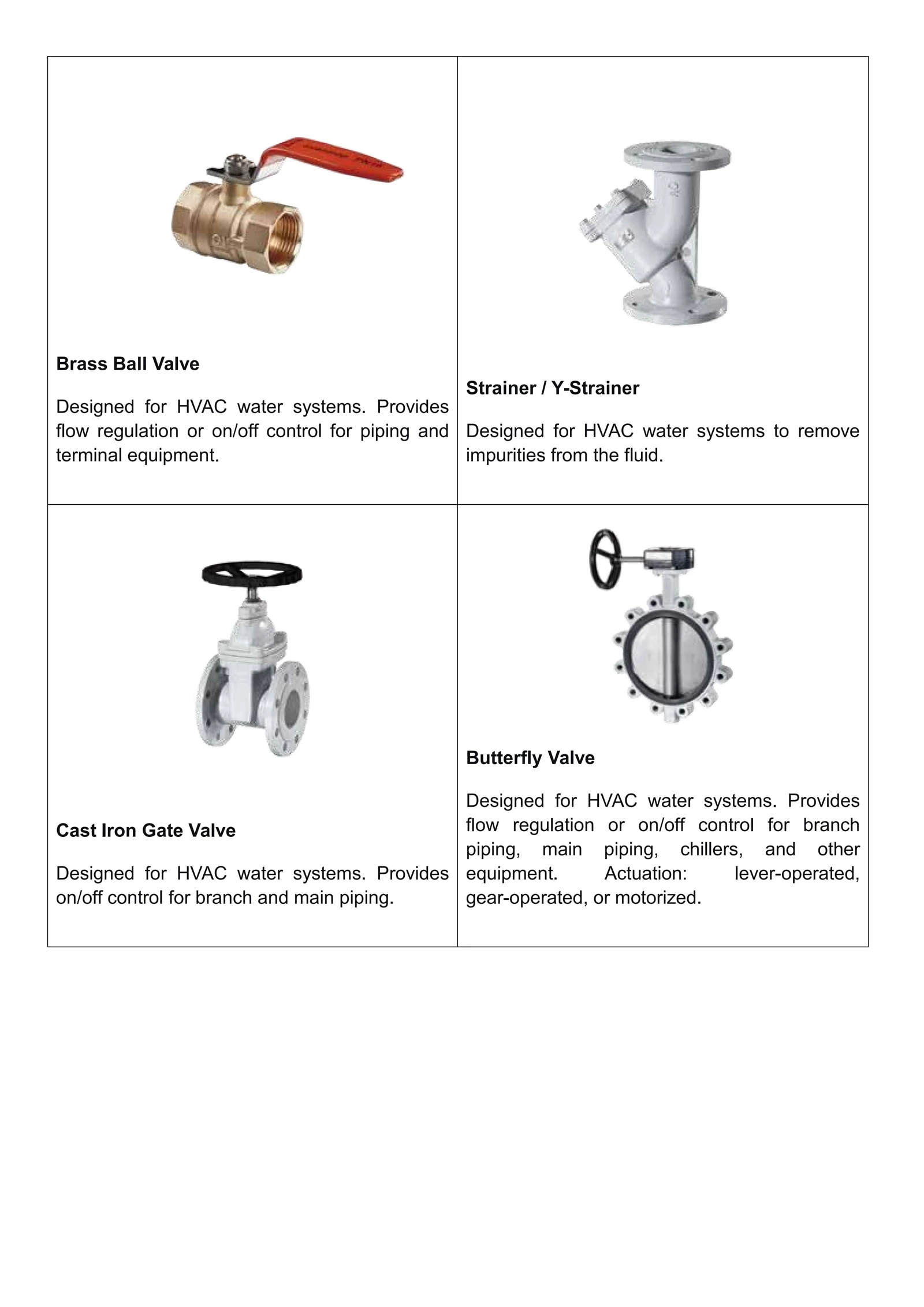

Isolation Valves (On/Off Control)
Gate Valves
Provide straight-through flow with minimal pressure drop, ideal for fully open or fully closed service in chilled and hot water systems.
Ball Valves
Quarter-turn operation with excellent sealing and minimal pressure loss, suitable for isolation in HVAC piping systems.
Butterfly Valves
Lightweight, compact, and cost-effective, commonly used for on/off control in large-diameter chilled and cooling water systems.
Diaphragm Valves
Provide bubble-tight sealing, suitable for applications with strict leak-tightness requirements, such as chemical dosing lines in water treatment systems.

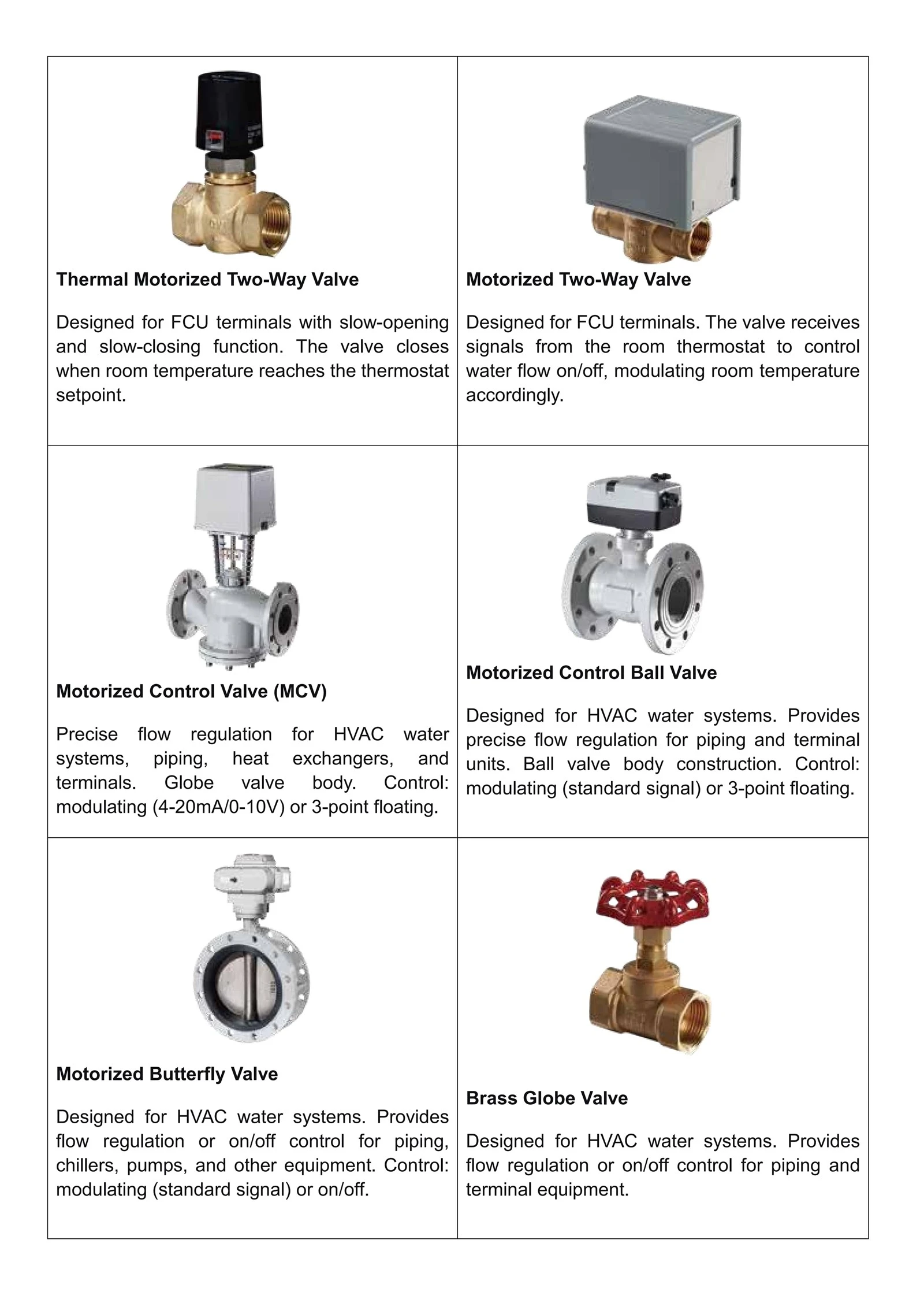

Control Valves (Modulating Flow)
Globe Valves
Offer precise flow control with adjustable regulation, ideal for modulating water flow to coils and heat exchangers in HVAC systems.
2-Way & 3-Way Control Valves
Used to regulate flow in chilled water and hot water circuits, providing accurate temperature control for AHUs and FCUs.

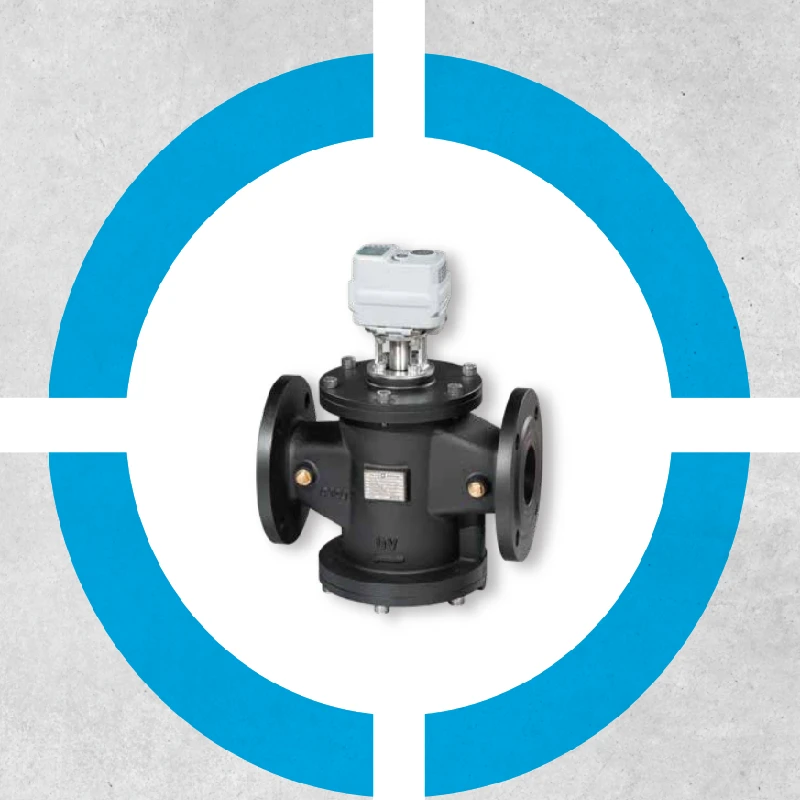

Pressure Independent Control Valves
Maintain stable flow regardless of system pressure fluctuations, ensuring consistent performance in variable flow systems.

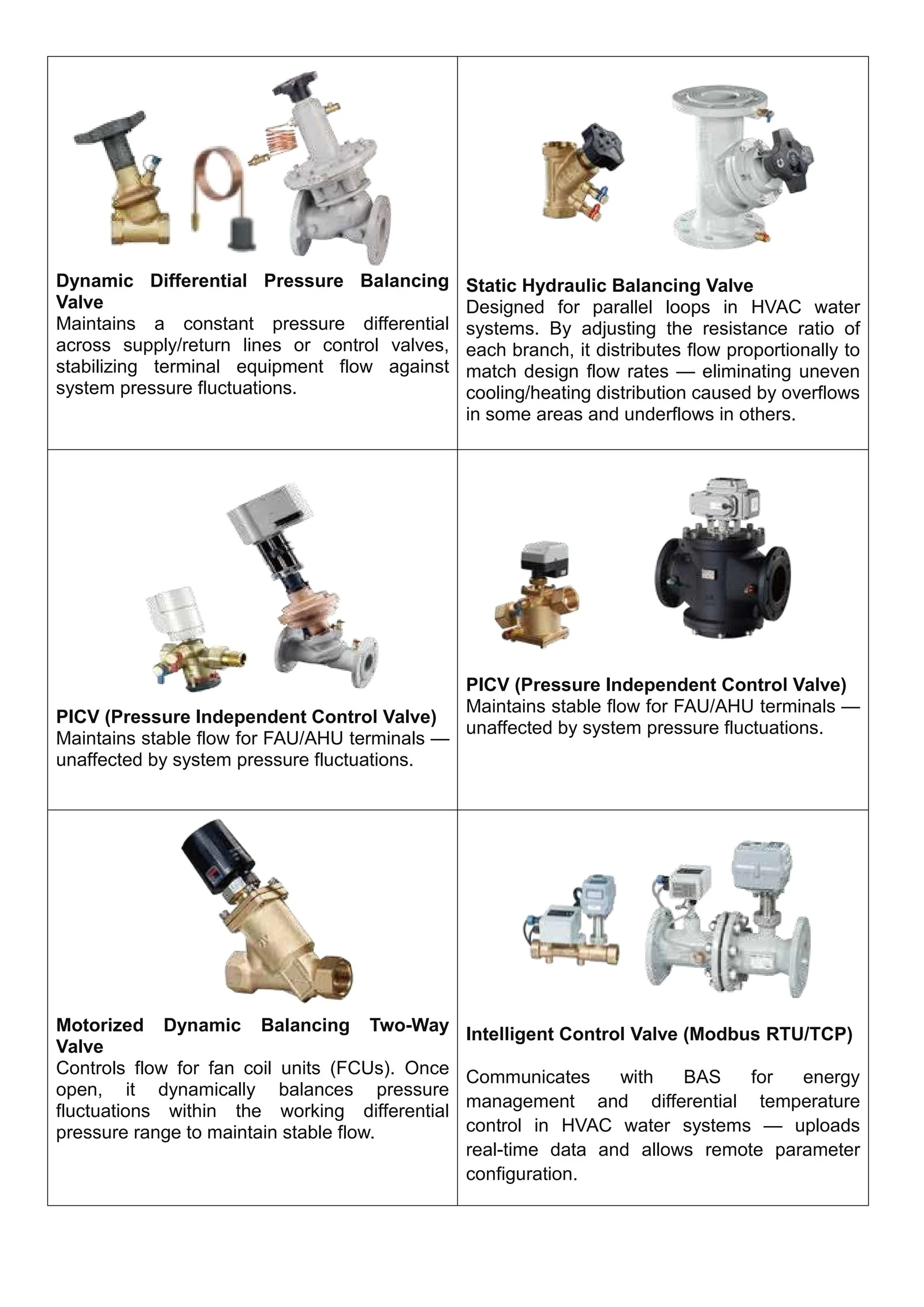

Balancing Valves
Manual Balancing Valves
Provide static balancing to ensure proper water distribution across all terminal units in a hydronic system.
Dynamic Balancing Valves
Automatically maintain design flow rates under varying system pressure conditions, ensuring optimal system performance.
Safety & Special-Purpose Valves
Pressure Relief Valves
Protect the system from overpressure conditions, preventing damage to equipment and piping.
Check Valves
Prevent backflow, protecting pumps and system components from reverse flow damage.
Strainers
Remove debris and sediment from the system, protecting pumps, valves, and other equipment from damage.
Air Vent Valves
Automatically release trapped air from the system, preventing air pockets that can reduce system efficiency and cause noise.
Actuation Options
Manual Valves
Handwheel, lever, or gear-operated valves for applications where automatic control is not required.
Electric Actuated Valves
Motor-operated valves for automated control via Building Management Systems (BMS), enabling remote operation and integration into central control strategies.
Instrumentation for System Monitoring
Pressure Gauges
Monitor system pressure at key points to ensure proper operation and detect potential issues.
Temperature Gauges
Provide visual indication of fluid temperatures at critical points in the system.
Flow Meters
Measure and display flow rates for system balancing and performance monitoring.
Pressure & Temperature Sensors
Provide electronic signals to BMS for continuous monitoring and automated control.
Key Features
Durable Construction
Manufactured from high-quality materials including cast iron, ductile iron, carbon steel, stainless steel, and bronze to suit different service conditions.
Leak-Tight Performance
Advanced sealing technologies ensure reliable shut-off and minimal leakage.
Corrosion Resistance
Internal and external coatings protect against corrosion and extend service life.
Precision Control
Control valves provide accurate modulation for precise temperature and flow management.
Wide Temperature & Pressure Range
Available in various pressure ratings and temperature ranges to suit specific HVAC applications.
Compatibility
Designed to work with standard HVAC piping systems, including threaded, flanged, welded, and grooved connections.
Applications
- Chilled Water & Cooling Water Systems
- Hot Water Heating Systems
- Steam & Condensate Systems
- Air Handling Units & Fan Coil Units
- Cooling Towers & Condensers
- District Cooling & Heating Networks
Selection Considerations
Selecting the right valve for an HVAC application requires evaluation of project-specific parameters, including:
Valve Function
Isolation, control, balancing, or safety.
Service Media
Water, glycol solution, steam, or other fluids.
Operating Temperature
Affects material selection and sealing technology.
System Pressure
Determines valve pressure rating and connection type.
Flow Characteristics
equired flow capacity and pressure drop characteristics.
Actuation Method
Manual, electric, or pneumatic based on automation requirements.
Actuation Method
Manual, electric, or pneumatic based on automation requirements.
Note: The above product description serves as a general reference for standard functionality and applications. Actual valve selection, sizing, and configuration must be based on specific project requirements, including system media, pressure, temperature, and control needs. For detailed technical data, customized configurations, or selection assistance, please contact us through any of the channels listed on our "Contact Us" page. Our technical team will provide tailored recommendations based on your specific project needs.
