Product Overview

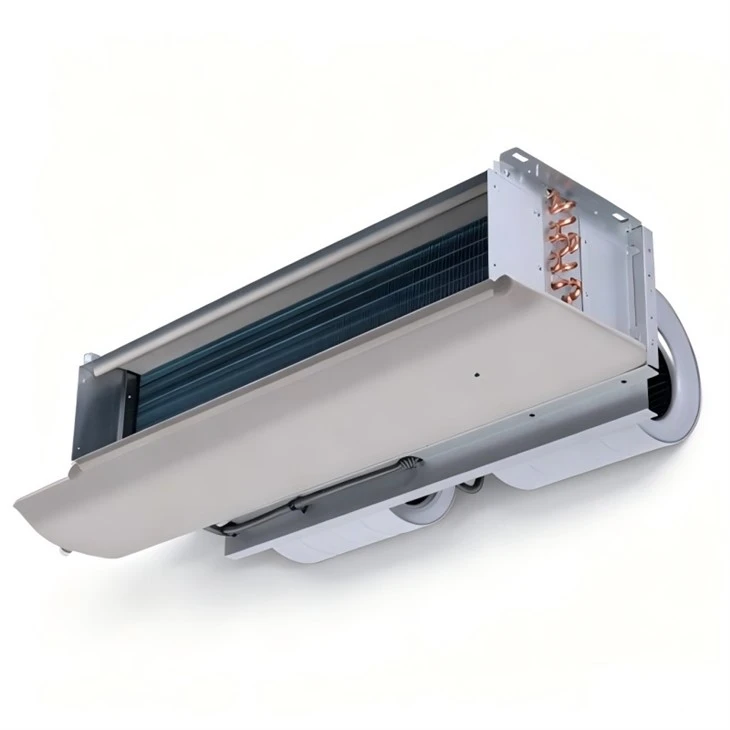

The Ceiling Concealed Fan Coil Unit (G Series) is a versatile air conditioning terminal device designed for seamless integration into modern interior spaces. As its name suggests, the main unit is completely hidden within the ceiling void, with only the air outlet and return air grille visible. This design preserves the aesthetic integrity of the room while delivering powerful and efficient cooling or heating.
This unit is engineered to provide a comfortable and quiet indoor environment. It is an ideal solution for applications where space is at a premium and visual appeal is paramount, such as hotels, offices, high-end residences, and commercial complexes.
Core Features

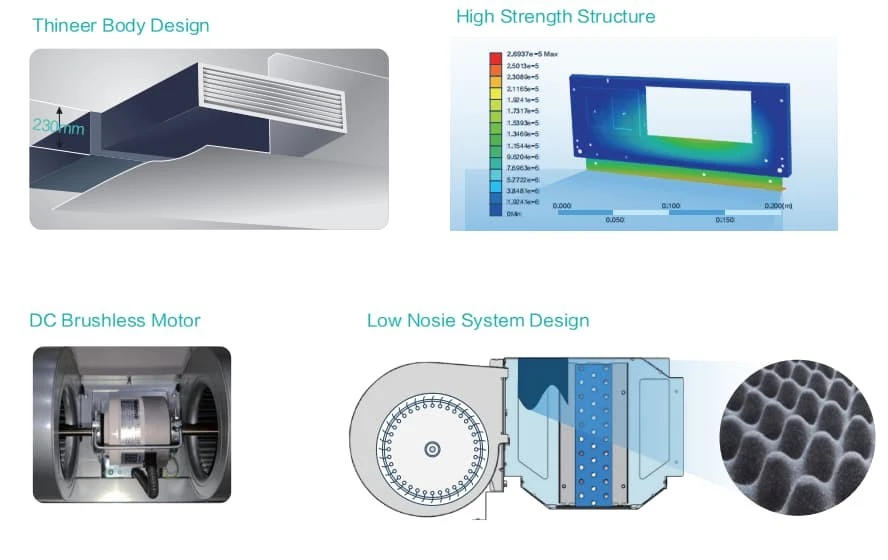

Space-Saving, Concealed Design
The unit's compact construction, with some models as thin as 230mm, allows for easy installation within the limited space of a false ceiling. By hiding the equipment, it frees up valuable floor and wall space, offering greater flexibility for interior design and maximizing the usable area of the room.
Low-Noise, High-Efficiency Operation
Equipped with a high-efficiency, low-noise centrifugal fan and advanced motor technology, the unit operates with minimal vibration and sound. This ensures a quiet, restful environment, making it perfect for noise-sensitive spaces like hotel rooms, hospitals, and libraries.
Flexible Installation & Configuration
The unit supports various installation configurations to suit different project needs. It is available with multiple external static pressure options (e.g., 12Pa, 30Pa, 50Pa), and the pipe connections can often be changed on-site from left to right, providing maximum flexibility for ductwork and piping design.
High-Efficiency Heat Exchange
The heat exchanger is constructed from high-quality seamless copper tubes mechanically bonded to aluminum fins. This design ensures superior heat transfer efficiency and durability, providing rapid cooling or heating. The unit is available in 2-pipe or 4-pipe configurations to suit different system designs.
Intelligent Control & Reliability
The unit can be equipped with a DC brushless motor, offering remarkable energy efficiency. It supports individual or group control (up to 16 units) via a wired remote controller, allowing for precise temperature management and enhanced energy savings.
Applications
- Hotel Guest Rooms & Suites
-
Office Buildings & Corporate Spaces
- Residential Apartments & Condominiums
- Hospitals & Healthcare Facilities
- Shopping Malls & Retail Spaces
- Any Application Where Space is Limited and Aesthetics are Important
Technical Advantages
Complete Concealment
Preserves interior design aesthetics by hiding the unit within the ceiling.
Ultra-Compact Design
Minimal ceiling space required, with unit heights starting from just 230mm.
Quiet & Comfortable
Low-noise operation, ideal for noise-sensitive environments.
Flexible Selection
Available with various static pressures (12/30/50Pa) and pipe configurations (2-pipe/4-pipe) to meet diverse project requirements.
Efficient & Durable
High-quality heat exchangers and motors ensure reliable performance and longevity.
Easy Maintenance
Durable, long-life components and simple access for servicing.

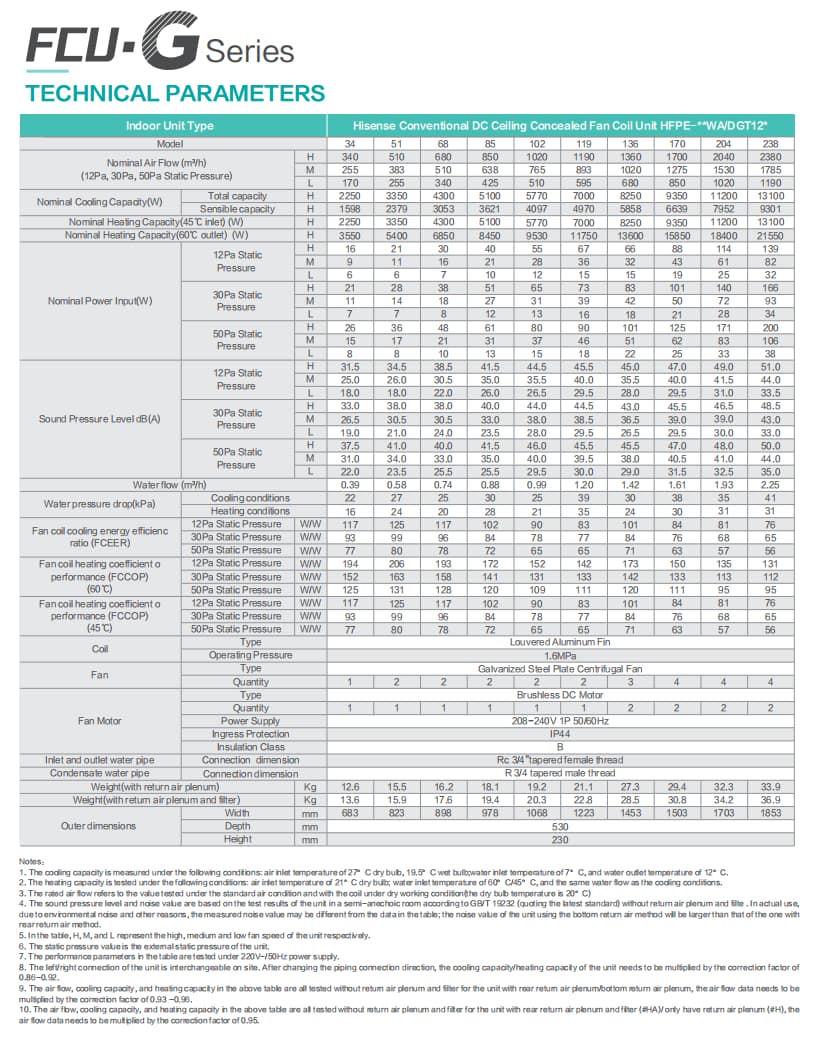

System Selection Reference
|
Selection Dimension |
Available Options |
Application Scenario |
|
Series |
G Series |
Standard conventional DC ceiling concealed fan coil unit |
|
Unit Type |
Ceiling Concealed |
For hidden installation within the ceiling void |
|
Installation Height |
From 230mm |
Suitable for spaces with limited ceiling height |
|
Static Pressure |
12Pa / 30Pa / 50Pa |
Selected based on duct resistance and air throw requirements |
|
Pipe System |
2-Pipe / 4-Pipe |
Selected based on the building's HVAC system (cooling only or cooling & heating) |
|
Control |
Individual / Group Control |
Up to 16 units can be controlled together for zoned energy savings |
The Ceiling Concealed Fan Coil Unit (G Series) provides an efficient, quiet, and space-saving air conditioning solution. Its concealed design allows architects and interior designers to achieve their vision without compromising on comfort or performance.
Note: The above specifications represent standard configurations and are intended for reference only. Actual product specifications may vary based on project requirements. For detailed technical data, customized configurations, or specific selection assistance, please contact us through any of the channels listed on our "Contact Us" page. Our technical team will provide tailored recommendations based on your specific project needs.
